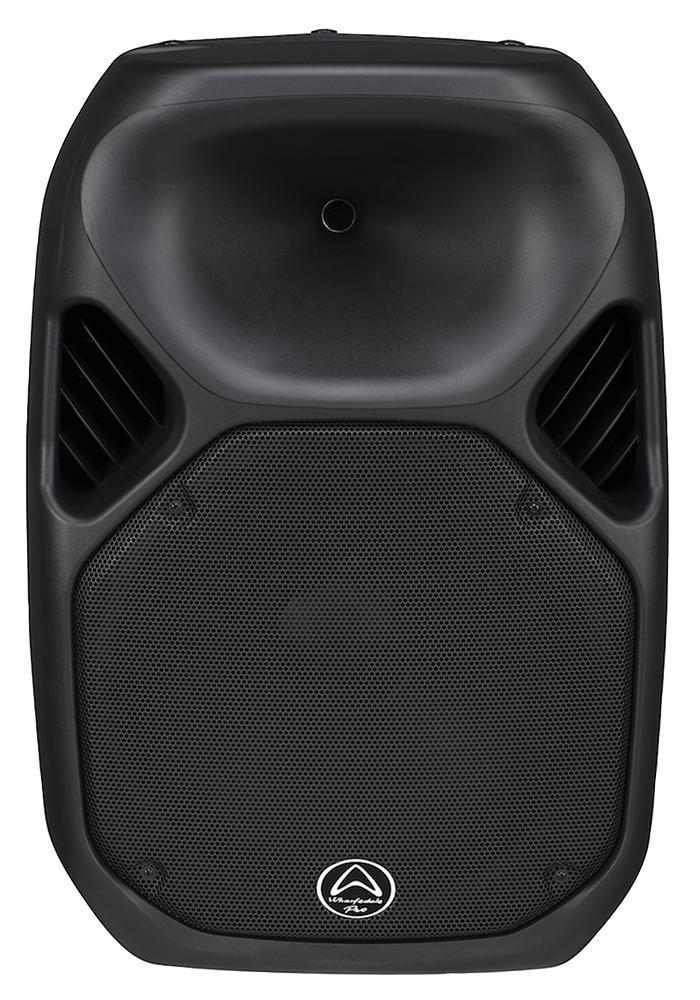

400W 15" Active PA Speaker with DSP, 100°x80° - TITAN AX15 BLACK
400W 15" Active PA Speaker with DSP, 100°x80° - TITAN AX15 BLACK
Couldn't load pickup availability
Engineers have selected the perfect amplifier combination for the transducers and crossovers. The AX15 includes 2x discrete amplifiers to ensure maximum efficiency and unparalleled audio quality. This model features some handy mixing functions. Two inputs with separate level controls allow for overall balance and control. With easy interfacing to external mixers and processors its simple to connect to larger systems or to expand the system. The AX15 also features a comprehensive self-protection system to ensure reliable operation right up to the power limit. Intelligent electronics constantly monitor for DC, overload, short circuit, thermals and LF/HF limiting is giving you peace of mind and preventing internal damage.
Features
- Two-way active speaker with 15" woofer and 1.75" compression driver
- Output power: LF 350W rms, HF 50W rms (Class D)
- DSP: advanced user selectable presets - 1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE
- Impedance: LF/HF4R/8R
- Input connector: 2x XLR & 2x 1/4" Combo jack switchable
- Output connector: switchable LOOP/MIX balanced XLR
- Driver protection: Independent LF and HF limiters (red LED)
- Dispersion (HxV): 100° x 80°
- Frequency response: 50Hz-20kHz
- Thermal and short circuit fault protection
- Power supply: AC100-120V/220-240V~ 50/60Hz
- Mounting:- 10x M8 threaded inserts including 4x M8 threaded inserts on bottom in OmniMount 30.0-type footprint - 35mm receptacle with lock screw
- Grille and finish: steel
- 2 carry handles (one on each side)
- Dimensions (HxWxD): 729x481x396mm
- Weight: 22.94kg
| Specifications | |
|---|---|
| Supply Voltage | 230V |
| Frequency Response Min | 50Hz |
| Frequency Response Max | 20kHz |
| External Height | 729mm |
| External Width | 481mm |
| External Depth | 396mm |
| Product Range | WHARFEDALE PRO Active Speakers |
| Plug Type | UK |
| Country of Origin: | China |
