40W 2 Way 4" Reference Ceiling Speaker 70V/100V/16R - CM20DTS
40W 2 Way 4" Reference Ceiling Speaker 70V/100V/16R - CM20DTS
Regular price
£87.99 GBP
Regular price
Sale price
£87.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

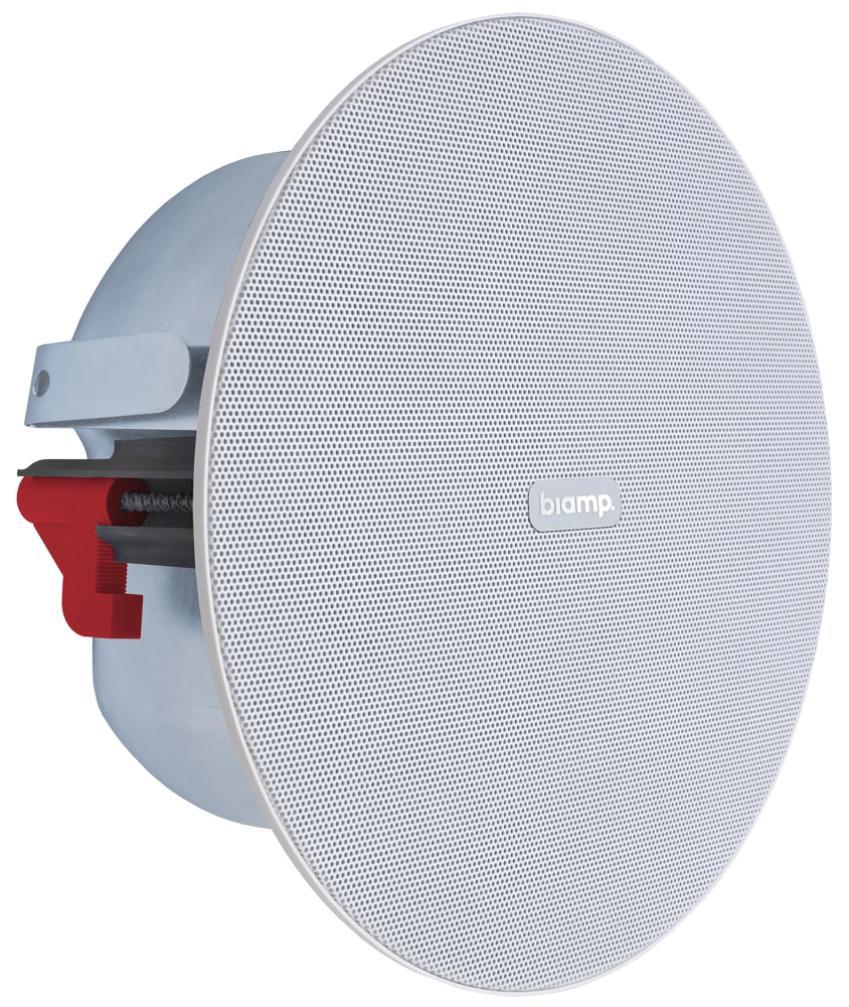

The versatile Desono CM20DTS 4" 2 way ceiling loudspeaker produces dynamic and warm sound ideal for high quality background music and voice reproduction installations. Only 83.5mm of depth makes it one of the the shallowest in its kind. The uncompromised sound quality and controlled sound performance makes it suitable for any kind of ceiling structure. The CM20DTS has a rotatable 70/100V power tapping selector on the front and offers 16R line connectivity. The thin edge grill with integrated neodymium fixing magnets will blend this speaker into any design environment.
Features
- 4.25" Woofer + 1" tweeter
- Thin edge, magnetically attached grille
- Tuned bass reflex port for optimised low frequency performance
- Overload protection for 24/7 failsafe operation
- For indoor use only
- Frequency response: 90Hz to 22kHz
- Dispersion (HxV): 150?x100?
- SPL max.: 109dB
- 70V/100V tappings: 1.25/2.5/5/10/20W
- Mounting: 2x mounting clamps
- Cutout diameter: 193mm
- Safety features: 2x hang points
- Items included: Tile rails, tile rail spacers, cutout template
- ETL listed to conform with UL Std 1480A and UL 2043; Certified to CSA C22.2#62368-1
- Dimensions (HxDia): 84x223mm
- Weight: 2.0kg
| Specifications | |
|---|---|
| Transformer Power Tappings | 20/10/5/2.5/1.25W |
| Frequency Response Min | 90Hz |
| Frequency Response Max | 22kHz |
| External Height | 84mm |
| External Width | 223mm |
| Product Range | APART Ceiling Speakers 16R/100V |
| Country of Origin: | China |
