40W Pendant Speaker 70V/100V/8R, Coaxial 5.25" - GLOBE-560XW
40W Pendant Speaker 70V/100V/8R, Coaxial 5.25" - GLOBE-560XW
Couldn't load pickup availability

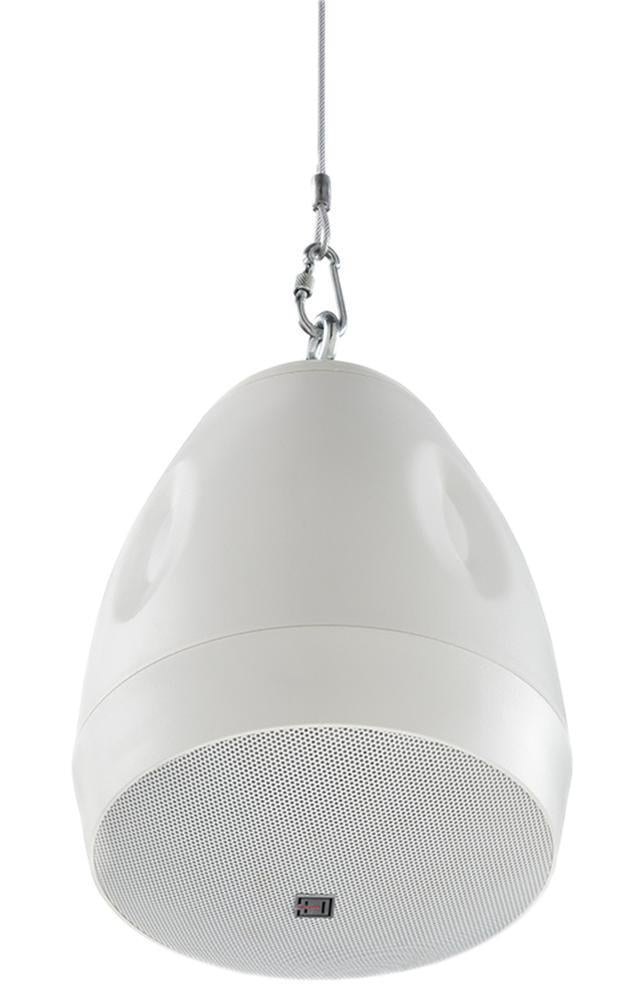

The Globe-560XW is a speaker designed for hanging on high ceilings (halls, venues, shopping centers, etc.), where no suspended ceilings or plasterboard structures are fitted. It has an elegant look, with minimal footprint. On rear side, in addition to the Phoenix connections and tap selector, there is a thread for the eyelet screw for leads, and a steel safety wire (1m length). Good sound quality is assured thanks to the coaxial transducer with 5.25" polypropylene woofer and 1" tweeter with titanium dome. The integrated line transformer allows to use it with 70V/100V lines and low impedance installations, to better adapt to different configurations and amplifier powers. Housing is made from ABS and is finished in white, but can be painted to any colour, if required.
Features
- Extremely safe hanging system
- Paintable housing and grille
- 2 Way passive, coaxial 5.25" woofer + 1" tweeter
- Output power 8R: 40W
- 100V tappings: 3.75/7.5/15/30W
- 70V tappings: 1.9/3.75/7.5/15W
- Frequency response: 65Hz to 20kHz
- Sensitivity: 90dB
- Mounting: M8
- Dimensions (HxDia): 250x195mmØ
- Weight: 2.4kg
| Specifications | |
|---|---|
| Transformer Power Tappings | 1.9/3.75/7.5/15/30W |
| Frequency Response Min | 65Hz |
| Frequency Response Max | 20kHz |
| External Height | 250mm |
| External Width | 195mm |
| Product Range | Helvia Pendant Speakers 70V/100V/8R |
| Country of Origin: | China |
