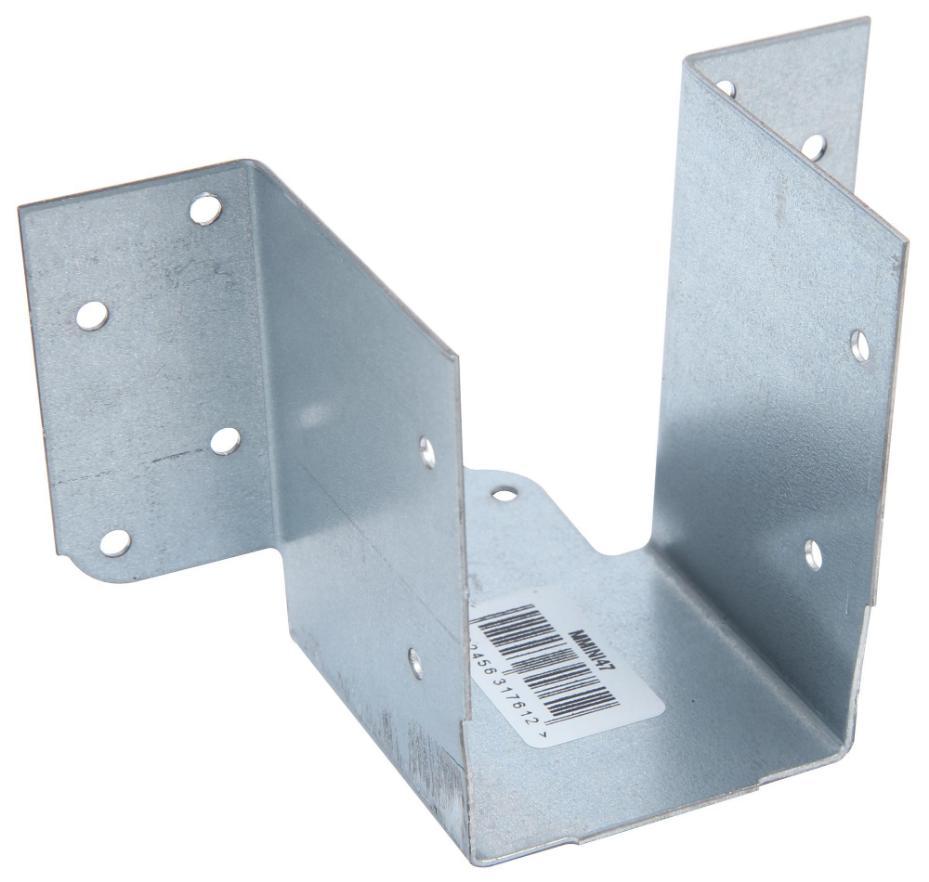

47mm x 75mm to 100mm Galvanised Mini Timber Joist Hanger - 47THM
47mm x 75mm to 100mm Galvanised Mini Timber Joist Hanger - 47THM
Regular price
£3.09 GBP
Regular price
Sale price
£3.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Designed to give a small and economic light weight timber to timber connection such as loft hatches and decking. Timber to timber joist hangers are suitable for light duty applications such as ceiling joists, decking and trimmers. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Tag on base of the hanger helps avoid rotation.
Features
- Conforms to Eurocode 5 and service class 2
- Joist Size WxH: 47mm x 75mm to 100mm
- Width x Length x Bearing: 47mm x 67mm x 50mm
- Safe Working For BS5268 (kN) Short Term: 4.17
- Safe Working For BS5268 (kN) Medium Term: 3.97
- Safe Working For BS5268 (kN) Long Term: 3.47
- No. of Nail Holes: 14
- Material: Carbon Steel
- Finish: Galvanised
| Specifications | |
|---|---|
| Size (mm) | 47mm |
| Body Length | 67mm |
| Country of Origin: | Great Britain |
