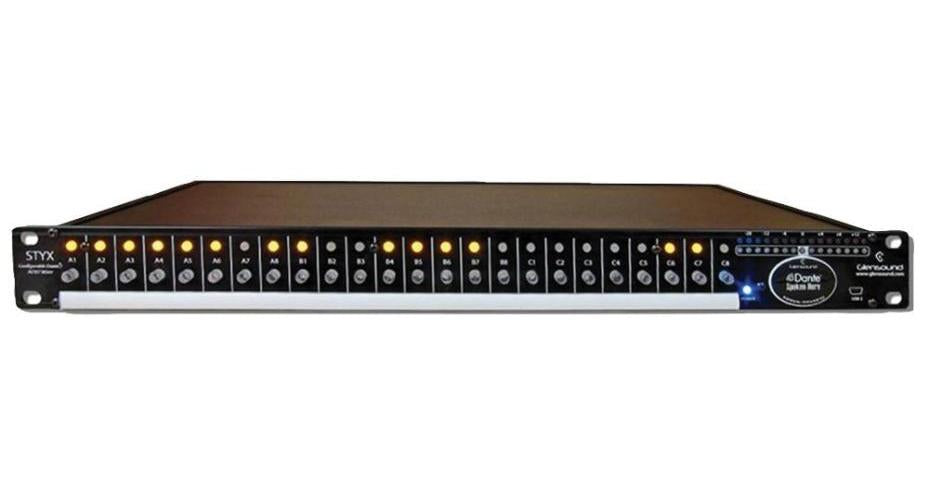

47x45 Network Audio Mixer with Dante/AES67 - STYX MIXER
47x45 Network Audio Mixer with Dante/AES67 - STYX MIXER
Couldn't load pickup availability
STYX is a hugely versatile configurable 47x45 non-blocking mixer/utility device with 32x32 network audio IN/OUT channels with the added benefit of 5x5 analog line level circuits, 2x2 AES3 circuits, 3x(+3) microphone/line inputs, 2x line up tone inputs & 3x stereo headphone outputs. The front panel features 24x assignable rotary encoders and 24x assignable illuminated switches, plus a mono assignable PPM and LED graph to indicate positioning of the encoders when they are in use. The real power of STYX is its Windows10 GlenComtroller app which in real time can adjust any of the 2115x mixer cross point levels, provides many setup options and, importantly, allows presets to be stored and recalled. STYX has also multiple redundant power supply sources and redundant network interfaces.
Features
- 32x Bi-directional AoIP channels (48kHz)
- 5x5 Analog line level circuits (2x D25 plugs wired to the AES59)
- 2x2 AES3 circuits
- 3x/3x Microphone/Line inputs
- 3x Stereo headphone outputs (both low and high impedance headphones)
- All 2115x mixer points have level controls
- 24x Assignable switches & encoders
- 4x GPIO circuits
- Network interface: 2x Copper Neutrik Ethercon, 2x SFP (Fibre GBIC) slots (all redundant)
- Mains inputs: 2x Filtered IEC, 100 to 240V AC, 47 to 63Hz redundant
- Microphone amplifiers are routed in the DSP to individual compressor/limiter circuits
- Phantom power: 48V
- The internal DSP provides 2x fixed rate oscillators, one at 1kHz and the other 1/5th octave lower at 629Hz
- Multiple configuration options
- Dimensions (HxWxD): 48x482x300mm
- Weight: 3.3kg
| Specifications | |
|---|---|
| Product Range | GLENSOUND Dante Audio Mixers |
| Plug Type | UK |
| Product Contents: | STYX, 2m RJ45 cable Cat5, IEC mains cable 2m, handbook |
| Country of Origin: | Great Britain |
