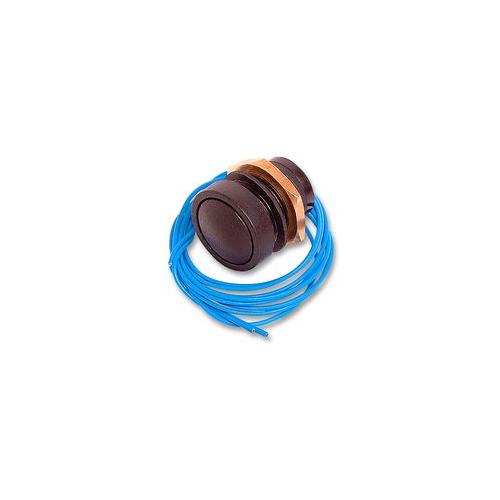

49-59111 Itw Switches Switch , Round , Black

The 49-59111 is a momentary action Pushbutton Switch which fit a 16mm diameter panel cut out. The range consists of a fully sealed IP67 version with insulated flying leads (500mm length) along with a panel sealed IP67 version which is terminated by a series 16 micro switch. Held in position by a snap fit retaining mechanism, the micro switch has a maximum current rating of 10A and the advantage of SPDT-DB contacts to cover all circuit requirements. Being double break, the contacts also provide reliable switching of DC loads. The body and button are made from PBT, a hard wearing thermoplastic polyester that is suitable for surface or sublimation printing or engraving.

• 1GR at 500VDC Insulation resistance
• Gold-plated palladium nickel contacts
• Round bezel button style
• 500mm Leads termination/body style
• Black button colour
• Up to +105°C Wide temperature
• Flame-retardant UL rated material
• Gold contacts on microswitch versions
• Operating force of 3N
