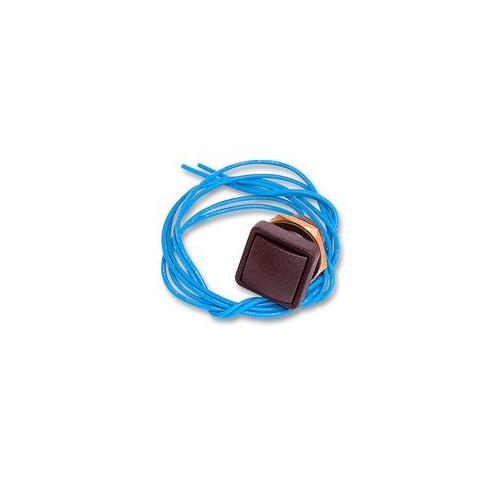

49-59211 Itw Switches Switch , Square , Black

The 49-59 series switches from ITW are momentary action pushbutton switches. These switches fit a 16mm diameter panel cut out. The range consists of a fully sealed IP67 version with insulated flying leads (500mm length) along with a panel sealed IP67 version which is terminated by a series 16 microswitch. The SPDT-DB contacts provide reliable switching for DC loads. The series 49-59 is available with a choice of round, round with status illumination (flying leads only) or square bezels and with 6 button colour variants. The body and button are made from PBT, hard wearing thermoplastic polyester that is suitable for surface printing or engraving.

• LED status illumination versions
• Screw or snap-in panel mount
• Square and round bezels
• Logic level and 10A versions available
• Fully sealed IP67 versions with 500mm insulated leads
• Wide temperature range up to 105°C
• Flame retardant UL rated material
• Gold contacts on microswitch versions
• Operating force of 3N
