4CH AoIP Output Interface with Dante/AES67 - AOIP-4O
4CH AoIP Output Interface with Dante/AES67 - AOIP-4O
Regular price
£778.19 GBP
Regular price
Sale price
£778.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

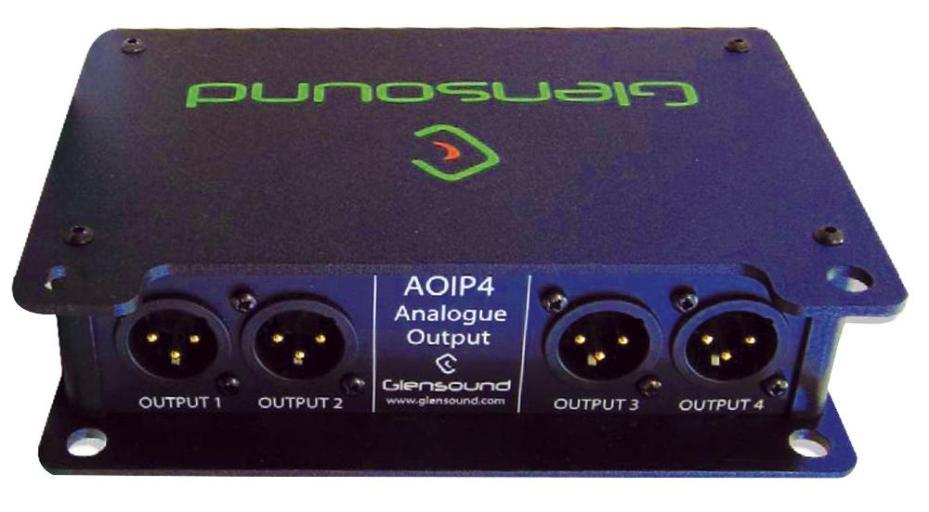

The Glensound AoIP4O is packaged in a small & rugged format and designed for outside broadcast, theatre and location applications. It is designed to easily and quickly interface existing analog equipment to a Dante® / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation. AoIP4O provides 4x balanced analog audio outputs to a Dante®/AES67 audio network. Robust proven construction techniques, simple reliable interface and excellent specifications will help make your technician's life easy, whilst the low cost and long asset life will keep the accountant satisfied.
Features
- PoE Powering (3W)
- Industry standard barrel connector is used for powering the AoIP units from an external 12V DC power source
- If both PoE and DC power sources are connected then power supply redundancy is automatically enabled
- Fixing holes and rubber feet (supplied)
- Fully protected electronically balanced circuits
- Frequency response: 20Hz to 22KHz
- Output impedance: 50R
- Noise: -92dBu (residual)
- DC input: 2.5mm barrel, Centre +Ve, 9 to 15V
- Neutrik Ethercon RJ45 network connector (Cat5)
- Audio: 4x Channels: 44.1k, 48k 2xChannels: 88.2k, 96k (24-bit)
- Ethernet interface: 100BASE-TX
- Dante chipset: Ultimo UXT-01-004
- Dimension (HxWxD): 41x153x105mm
- Weight: 420g
| Specifications | |
|---|---|
| Product Range | GLENSOUND AoIP Analog Interfaces |
| Product Contents: | AoIP4O, 2m RJ45 Cat5 Network Cable, Handbook, 4x rubber feet sticker |
| Country of Origin: | Great Britain |
