4CH Audio Monitor 1U with Dante/AES67 - BELLA 4
4CH Audio Monitor 1U with Dante/AES67 - BELLA 4
Regular price
£1,282.69 GBP
Regular price
Sale price
£1,282.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

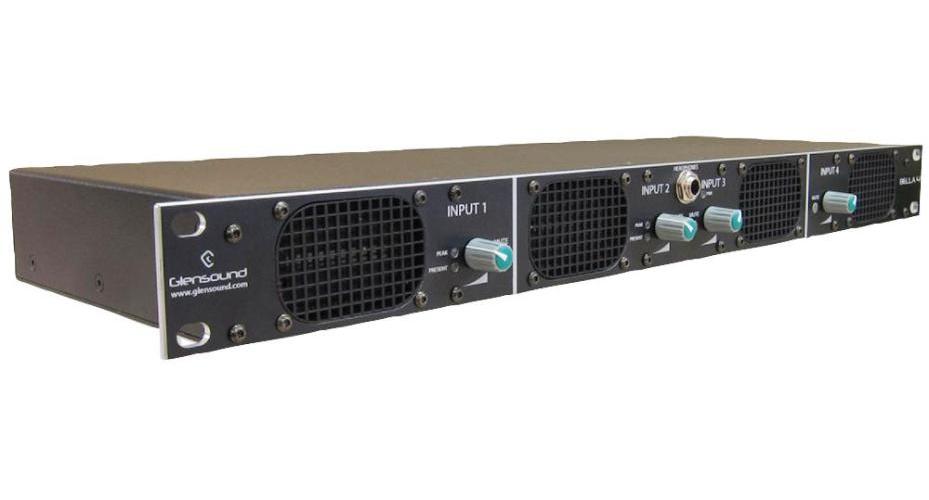

The Bella4 is a confidence monitoring rack for 4x loudspeakers. It is a new design that features the very latest technology in loudspeaker and amplifier design giving it an extended acoustic frequency rangeand low distortion (compared to old legacy equivalent products). The 4x loudspeakers are each fed from their own Dante® (AES67 compliant) network audio input. Each channel has a front panel audio presence indicator, an input peak LED and an illuminated channel mute switch. Front panel volume controls adjust the audio output of the speakers and the headphone circuit.
Features
- Modern loudspeaker drive units
- Class D amplifiers with inbuilt loudspeaker protection
- Channel mute switch
- Presence and peak LEDs
- Front panel headphone connection with level control (6.35mm TRS jack)
- Network interface: 1x RJ45 Neutrik Ethercon
- AES67 compliant: Audinate Ultimo chipset
- Frequency response: 120Hz to 22kHz
- Audio inputs: 4x AoIP
- Audio outputs: 4x Loudspeaker (and AoIP)
- THD: 0.18%
- Internal speakers power: 4W rms
- Audio sampling rate: 48kHz for 4x channels, 96kHz for 2x channels (24-bit)
- Noise: -61.5dBA
- Power consumption: 25W max.
- Power supply: 1x Filtered IEC 100 to 240V, 50 to 60Hz
- Dimensions (HxWxD): 48x482x164mm
- Weight: 1.35kg
| Specifications | |
|---|---|
| Supply Voltage | 230V |
| Frequency Response Min | 20Hz |
| Frequency Response Max | 22kHz |
| External Height | 48mm |
| External Width | 482mm |
| External Depth | 164mm |
| Product Range | GLENSOUND Dante Audio Monitors 1U |
| Plug Type | UK |
| Product Contents: | Bella4, 1x 2m RJ45 cable Cat5, 1x IEC mains cable, handbook |
| Country of Origin: | Great Britain |
