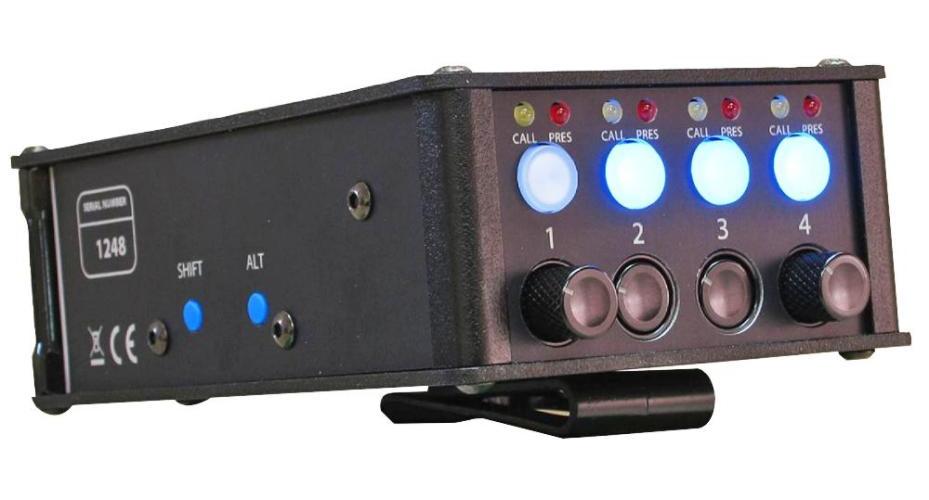

4CH Network Audio Beltpack Intercom with Dante/AES67 - BEATRICE B4+

4CH Network Audio Beltpack Intercom with Dante/AES67 - BEATRICE B4+

Regular price £959.29 GBP
Regular price Sale price £959.29 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The Beatrice B4+ is Glensound's first Broadway design unit, with 4x FW & 4x IFBs to the Dante/AES67 Network. The B4+ can receive 4x channels of audio from 4x completely separate network locations. The design of the B4+ is ultra compact to make the unit as unobtrusive to the operator as possible. The microphone input is on a 3-pin XLR and features gain adjust and 48V phantom power. 4x Separate talk buttons route the microphone input to either of the 4x network outputs. The button operation can be configured as momentary, latching or intelligent. A double tap on any of the talk buttons will produce a 'call' signal alert that will be received by another Beatrice unit. An LED indicates an incoming call alert, which will also produce an audio indication on the headphones. Each input has a separate level control adjust and a signal present indicator. Monitoring, setup and control are all available via GlenController app remote control.

Features

  • Ultra compact box
  • Single cable for power & audio (AoIP, PoE - 2m RJ45 lead provided)
  • High specification microphone amplifier
  • Listen to 4x separate network locations (can receive 4x incoming audio channels, each at 48kHz)
  • 4x Direct talkback buttons
  • 4x Permanent IFB outputs
  • Remote control via GlenController app
  • AES67 Compliant: Audinate Broadway chipset
  • Network interface: 1x RJ45 Neutrik Ethercon (1000Mbps)
  • SMPTE ST2110-30 compliant using Dante Domain Manager
  • Headphone output: 6.35mm TRS socket 32 to 1000R (can be safely connected to TS mono jack plug)
  • Power consumption (PoE): <15W (48V)
  • Input noise: -125.6dB
  • Band Pass Filter: 43Hz to 20kHz
  • Inband calling frequency: 20kHz
  • Duration of signal (call circuit): 2s
  • Laser etched aluminium front & rear panels and powder coated aluminium sides
  • Operating temperature: 0 to +50°C
  • Dimensions (HxWxD): 40x80x130mm
  • Weight: 300g

Specifications
Product Range GLENSOUND Dante Beltpack Intercoms
Product Contents: Beatrice B4+, 1x 2m RJ45 cable Cat5, handbook
Important Product Info: This chipset can receive 4x audio channels from 4x different network locations
Country of Origin: Great Britain

EAN: 617395415915
Manufacturer Part Number:
