4CH Network Audio Beltpack Intercom with Dante/AES67 - BEATRICE B4
4CH Network Audio Beltpack Intercom with Dante/AES67 - BEATRICE B4
Couldn't load pickup availability

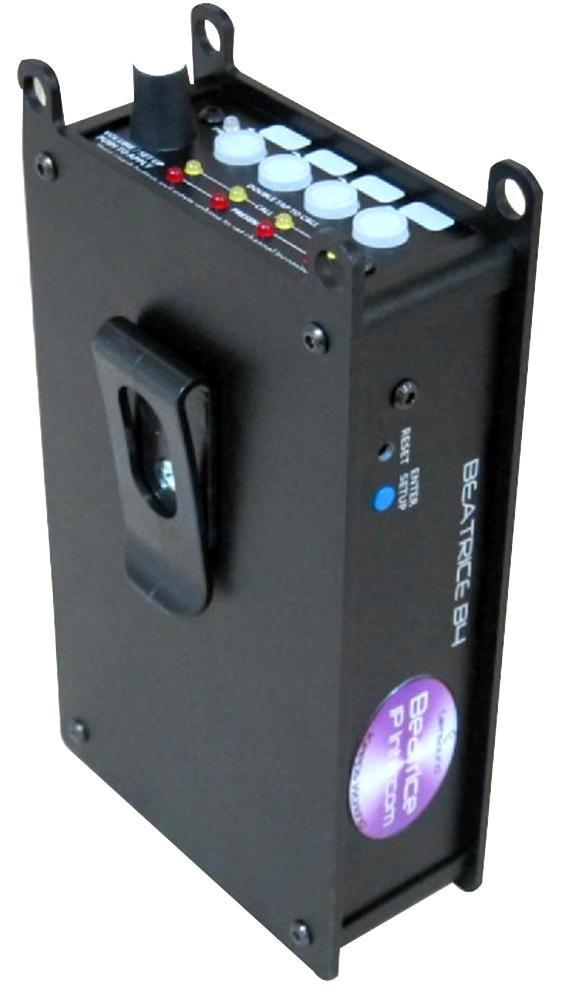

The Glensound Beatrice B4 is a robust, 4x channel beltpack intercom with crystal clear audio designed for broadcast, theatre and professional audio applications. It is a part of Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard networks. It is also fully compatible with other manufacturers' equipment using the Dante protocol. The Beatrice B4 is also AES67 compliant. This small desktop unit was deigned to be very easy to use for the operator and simple to set up for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.
Features
- Dante routing & partyline
- Single cable for power & audio (AoIP, PoE - 2m RJ45 lead provided)
- Channel and master volume control, panning
- Can receive 4x incoming audio channels, each at 48kHz
- AES67 Compliant: Audinate Ultimo UXT-01-004 chipset
- Network interface: 1x RJ45 Neutrik Ethercon (100Mbps)
- Laser etched aluminium front & rear panels and powder coated aluminium sides
- Display for setup and LED presence indicators
- Mic input: 3 Pin balanced XLR socket (phantom power 12V)
- Headphone output: 6.35mm TRS socket 32 to 1000R (can be safely connected to TS mono jack plug)
- Power consumption (PoE): <5W (48V)
- Input noise: -110dB
- Band Pass Filter: 50Hz to 15kHz
- Inband calling frequency: 20kHz
- Duration of signal (call circuit): 2s
- Compatibility: All Glensound Beatrice units & studio technologies
- Operating temperature: 0 to +50°C
- Dimensions (HxWxD): 39x92x164mm
- Weight: 850g
| Specifications | |
|---|---|
| Product Range | GLENSOUND Dante Beltpack Intercoms |
| Product Contents: | Beatrice B4, 1x 2m RJ45 cable Cat5, handbook |
| Important Product Info: | This chipset can only receive 4x audio channels from a maximum of 2x network locations |
| Country of Origin: | Great Britain |
