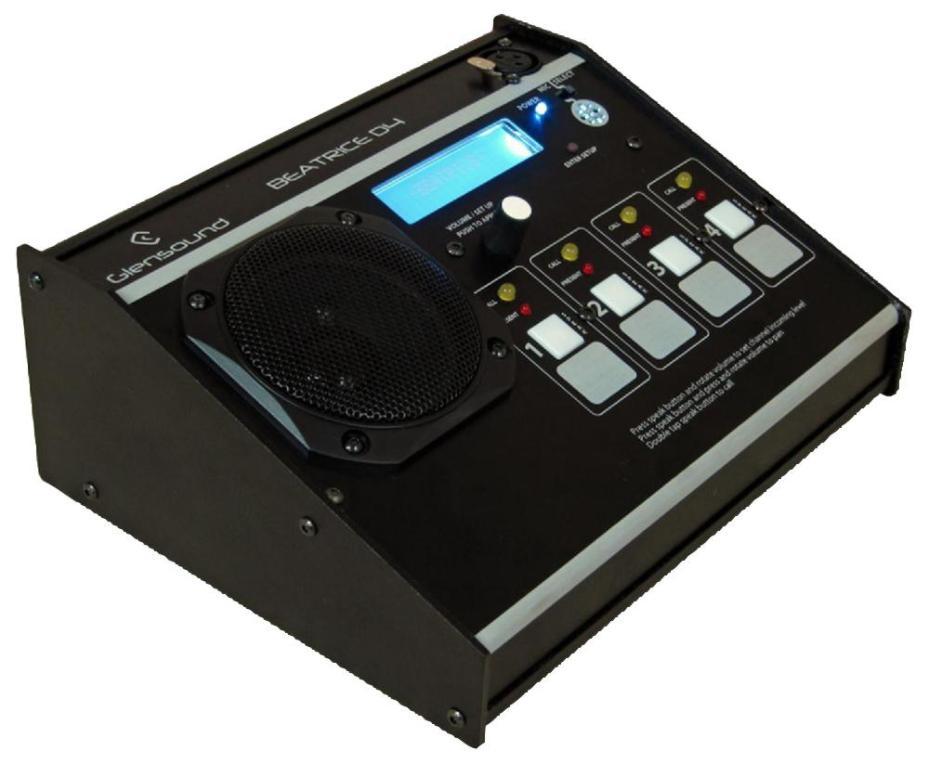

4CH Network Audio Desktop Intercom with Dante/AES67 - BEATRICE D4
4CH Network Audio Desktop Intercom with Dante/AES67 - BEATRICE D4
Couldn't load pickup availability
The Glensound Beatrice D4 is a robust, 4x channel Desktop intercom with crystal clear audio designed for broadcast, theatre and professional audio applications. It is part of Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard networks. It is also fully compatible with other manufacturers' equipment using the Dante/AES67 protocol. This small desktop unit was designed to be very easy to use for the operator and simple to set up for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.
Features
- 1x Single user connected to the unit can listen to and communicate with 4x separate locations on the network
- Dante routing & partyline
- Onboard mic & external mic input
- Large diameter visatron loudspeaker: 8cm (3.3") fullrange, high efficiency, 10W, 130 to 20000 Hz
- AES67 Compliant: Audinate Ultimo UXT-01-004 chipset
- Volume, panning & inputs levels control
- Single cable for power & audio (AoIP, PoE - 2m RJ45 lead provided), or mains powered
- Headphone output: 6.35mm TRS socket 32 to 1000R (can be safely connected to TS mono jack plug)
- Inband calling frequency: 20kHz
- Duration of signal (call circuit): 2s
- Band Pass Filter: 50Hz to 15kHz
- Input noise: -110dB
- Network interface: 1x RJ45 Neutrik Ethercon (100Mbps)
- Can receive 4x incoming audio channels, each at 48kHz
- Power consumption (PoE): <8W (48V)
- Compatibility: All Glensound Beatrice units & studio technologies
- Mains power supply: 100 to 240V AC ±10%, 50 to 60 Hz
- Mains & PoE supplies are dioded together for glitch-free redundant operation
- Dimensions (HxWxD): 41x214x172mm
- Weight: 1.1kg
| Specifications | |
|---|---|
| Product Range | GLENSOUND Dante Desktop Intercoms |
| Product Contents: | Beatrice D4, 1x 2m RJ45 cable Cat5, handbook |
| Important Product Info: | This chipset can only receive 4x audio channels from a maximum of 2x network locations |
| Country of Origin: | Great Britain |
