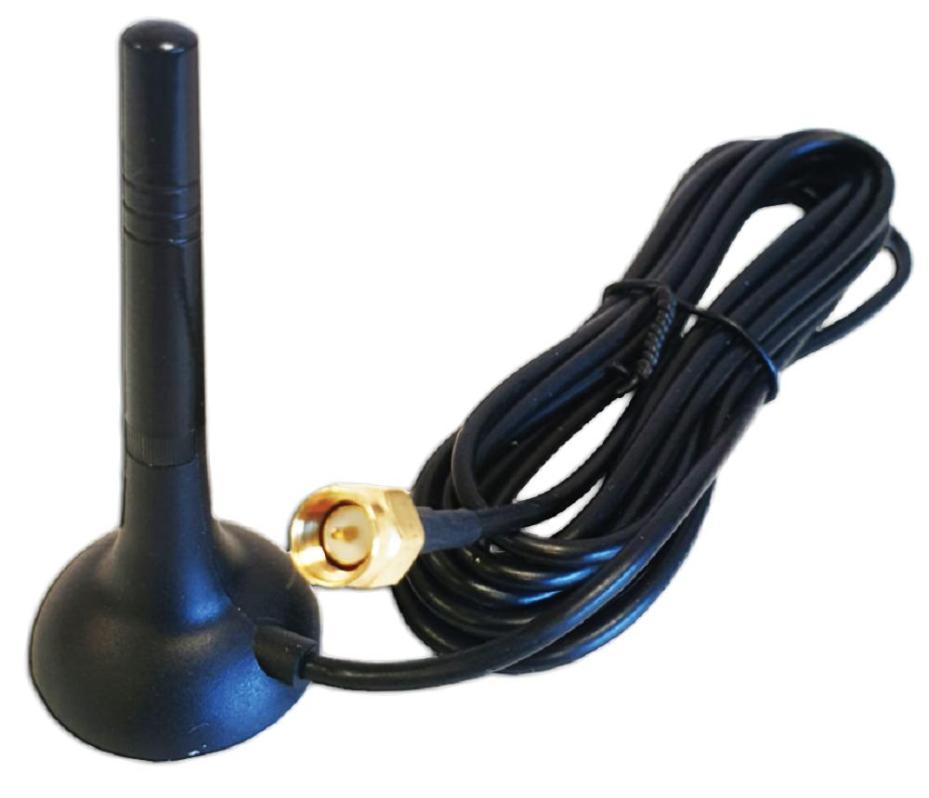

4G LTE GSM Helical Stubby Magnetic Antenna, 5dBi - ANT-4GSTUB5-SMA
4G LTE GSM Helical Stubby Magnetic Antenna, 5dBi - ANT-4GSTUB5-SMA
Regular price
£11.09 GBP
Regular price
Sale price
£11.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
A rugged gain antenna for GSM applications where high performance is required. Using this antenna will give optimum range and reliability to your application.
Features
- Suitable for range improvement, general purpose GSM network and 868MHz / 915MHz ISM telemetry
- Cable: 2.5m RG174 coax to SMA male
- Operating temperature: -40°C to 60°C
| Specifications | |
|---|---|
| Antenna Type | Stubby |
| Frequency Min | 698MHz |
| Frequency Max | 2700MHz |
| Antenna Mounting | Magnetic |
| Gain | 5dB |
| VSWR | 1.5 |
| Input Impedance | 50ohm |
| Antenna Polarisation | Linear |
| Country of Origin: | China |
