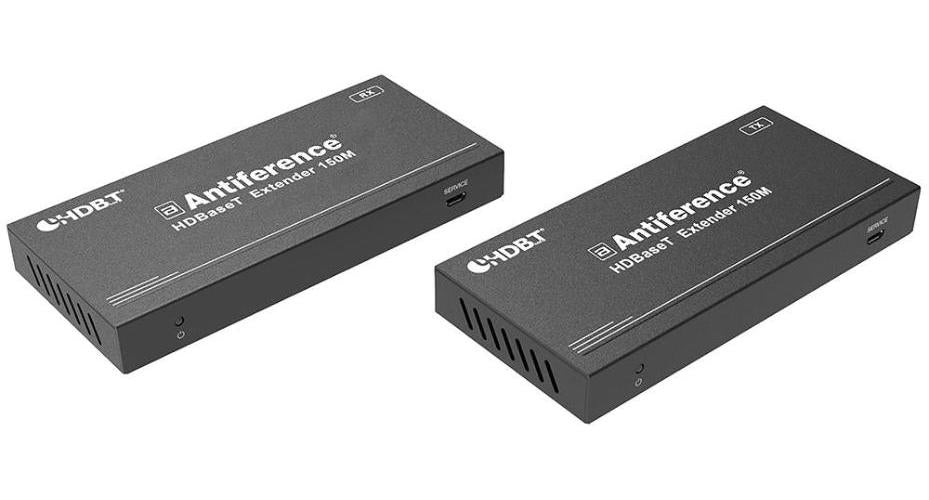

4K HDBaseT 120m Extender with HDMI Loop & IR - HDMIE150V2
4K HDBaseT 120m Extender with HDMI Loop & IR - HDMIE150V2
Regular price
£205.89 GBP
Regular price
Sale price
£205.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Compact 4K HDbaseT extender over Cat6 lead with 18Gbps and full 4:4:4 colour sampling. Extend a 4K source such as SKY Q up to 120m or a 1080p source up to 150m. Features include HDMI loop through on transmitter, bidirectional IR control, audio output on receiver & a PoC system allowing the system to be powered from the transmitter or receiver.
Features
- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant 18Gbps
- Video (RGB): 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:2, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i, all HDMI 3D TV, all PC
- Colour depth up to 12-bit RGB
- Audio: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS, HD Master, DTS HD-HRA, DTS-X, PCM2.0
- De-embedded audio output on RX
- HDMI loop out on TX
- HDR, HDR10+, Dolby Vision & HLG function supported
- PoC system which can be powered from TX or RX
- Power supply: 100 to 240V AC, 1A (24V DC) locking connector
- Signal extension: 4K2K over 120m, 1080p over 150m
- Dimensions (HxWxD): 18x140x65mm (each)
- Weight: 160g (each)
| Specifications | |
|---|---|
| Product Range | Antiference HDbaseT Extender Kits |
| Plug Type | UK |
| Product Contents: | 1x transmitter, 1x receiver |
| Country of Origin: | China |
