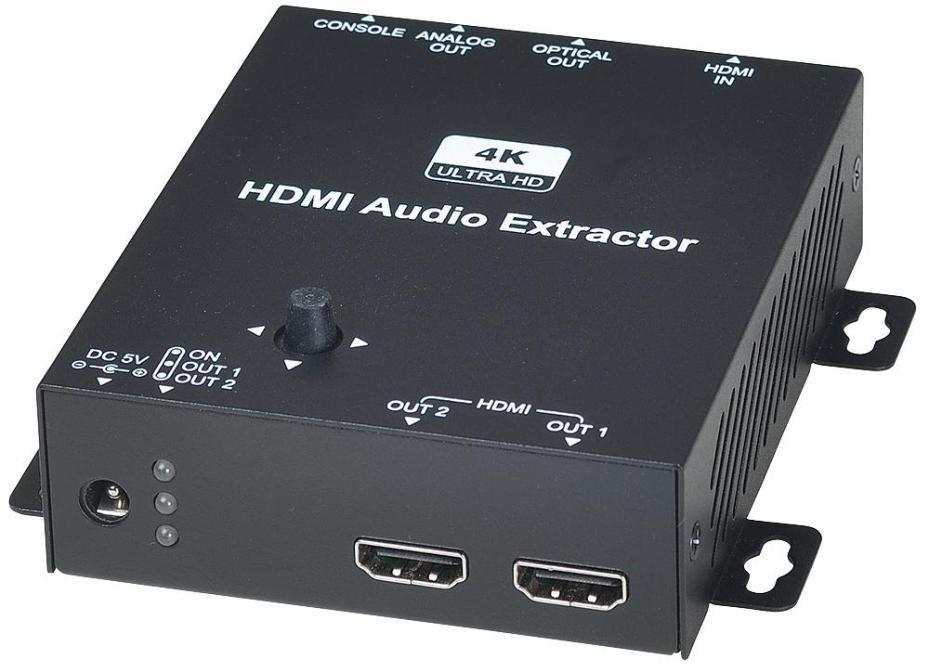

4K HDMI 2.0 Audio Extractor with Up/Down Scaler - PRO SIGNAL

Product Info

1. Supports HDMI 2.0, HDCP 2.2, 4K at 60Hz 4:4:4 18Gbps (6Gbps per colour), 3D, HDR
2. Extract 4K HDMI audio and outputs to a multi-channel digital or analogue audio signal
3. Route HDMI audio simultaneously via S/PDIF and 3.5mm stereo audio outputs
4. Supports uncompressed audio such as LPCM
5. 1080p to 4K upscale and 4K to 1080p downscale
6. HDCP 2.2 convert to HDCP 1.4, 4K 4:4:4 convert to 4:2:0
7. Audio output support up to 7.1 channel
8. Supports CEC pass-through
9. EDID management, 2/5.1/7.1 patched EDID
10. 5-Way joystick switch for full OSD operation

1. HDMI audio output: LPCM7.1 at 192KHz, Dolby TrueHD, DTS-HD MA
2. Input: HDMI
3. Outputs: 2x HDMI, optical out, analogue stereo out
