4K UHD EDID Manager - RE-EDID-4K22
4K UHD EDID Manager - RE-EDID-4K22
Regular price
£190.69 GBP
Regular price
Sale price
£190.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

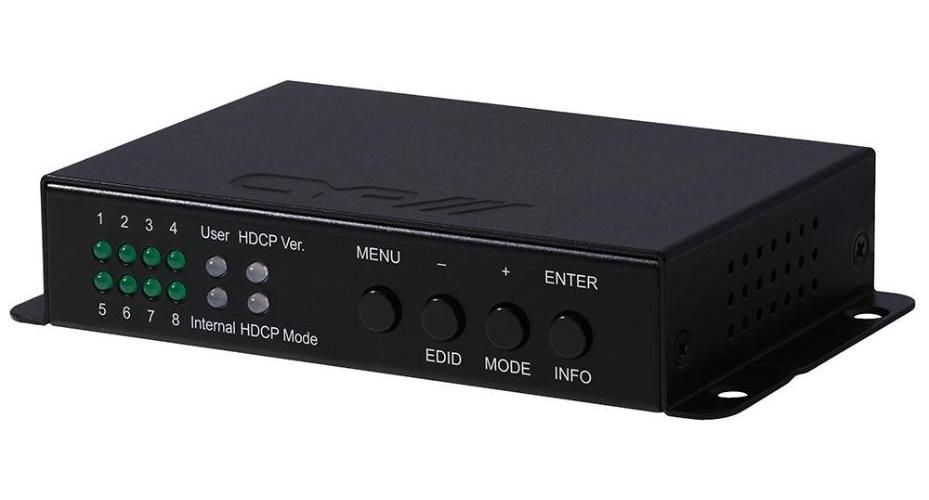

The RE-EDID-4K22 is designed to manage and manipulate the HDMI/DVI EDID information provided to a HDMI source device by a connected display. EDID contains critical information about the capabilities of the connected display, including audio and video format support, HDMI feature support, etc. This product aims to simplify the technical complications that often arise when performing video system integration, home cinema installation, integrating commercial displays or audio/video equipment testing. It also supports EDID Emulation and Bypass modes. This device is perfect to overcome source and screen compatibility issues, particularly when integrating PCs into an AV system.
Features
- HDMI input and output with 18Gbps (6G) 4K UHD support
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 3840x2160 at 60Hz (4:4:4, 8-bit) and 4096x2160 at 60Hz (4:4:4, 8-bit)
- Supports 48-bit Deep Colour up to 1080p at 60Hz
- Supports four different EDID modes - Read/Write/Emulate/Bypass
- Read mode - reads the TV/display's EDID information
- Write mode - overwrites the TV/display's EDID information (TV/display needs to be able to support overwrite function)
- Eight unique sets of EDID settings may be stored via the learning procedure
- Emulator mode - allows the source device to read the selected EDID information from the unit's default or learnt EDID memory
- Bypass mode - allows the source device to read the EDID information from the TV/display directly
- Supports DVI sources when used with a DVI to HDMI adaptor (not supplied)
- Supports CEC functionality
- Inputs: HDMI (uncompressed AV and data), USB3.0 Type B (service and PC port power and data)
- Outputs: HDMI (uncompressed AV and data)
| Specifications | |
|---|---|
| Country of Origin: | Taiwan |
