4tronix - PICONZ - Picon Zero, Robotics Controller
4tronix - PICONZ - Picon Zero, Robotics Controller
Regular price
£22.29 GBP
Regular price
Sale price
£22.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

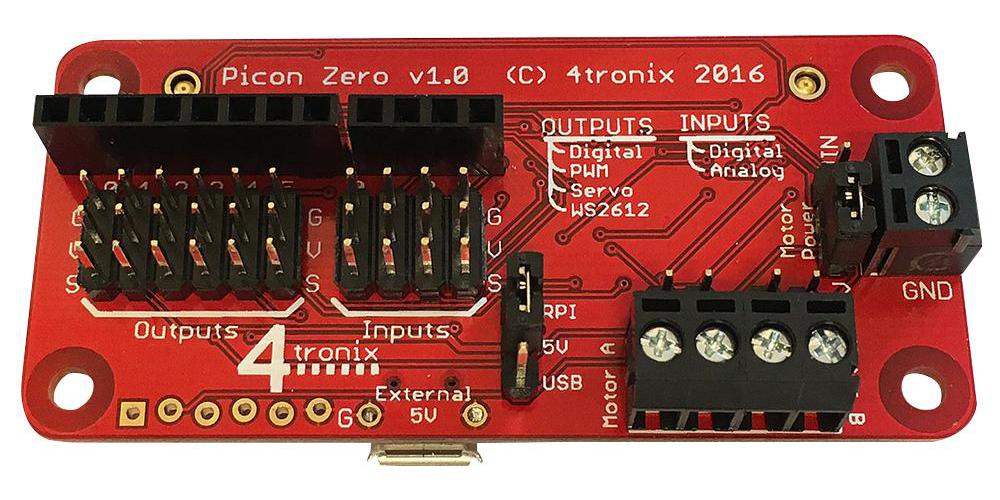

Picon Zero is an Intelligent robotics controller for your Raspberry Pi based mobile robot. A built-in processor handles all the direct communication with your input and output devices, leaving you to worry about the overall control with your Raspberry Pi program.
Product Info
- Supports all models of Raspberry Pi with 40 pin Connector, Zero, Model A+/B+ and Pi 2 or 3 Model B
- Programming is fully supported with an extensive Python library
- Ideal for use with Raspberry Pi Zero
- I2C Interface, leaving all GPIO pins free for your own use
- 2 Full H-Bridge motor drivers with full forward/reverse and speed control, Up to 1.5A continuous per channel (2A peak)
- 6X General purpose output channels (5V) that can be set as Digital, PWM, Servo, WS2812( aka neopixels)
- 4X General purpose inputs (5V) that can be Digital, Analog, DS18B20 (digital temperature sensor)
- All inputs and outputs use 3-pin GVS connectors (Ground, Volts, Signal), allowing 3-pin sensors, servos, etc. to plug straight in
- Dedicated socket for HC-SR04 ultrasonic sensor, Plug it straight in, or use jumper wires to mount it further away
- 5x GPIO Signals, 5V, 3V and Ground brought out to a header
| Details | |
|---|---|
| Kit Contents: | Controller Board |
| Important Product Info: | Controller board is supplied fully assembled. No soldering is required. |
| Country of Origin: | China |
