4tronix - PISTEP2Q - Quad Stepper Motor Control Board
4tronix - PISTEP2Q - Quad Stepper Motor Control Board
Regular price
£16.89 GBP
Regular price
Sale price
£16.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

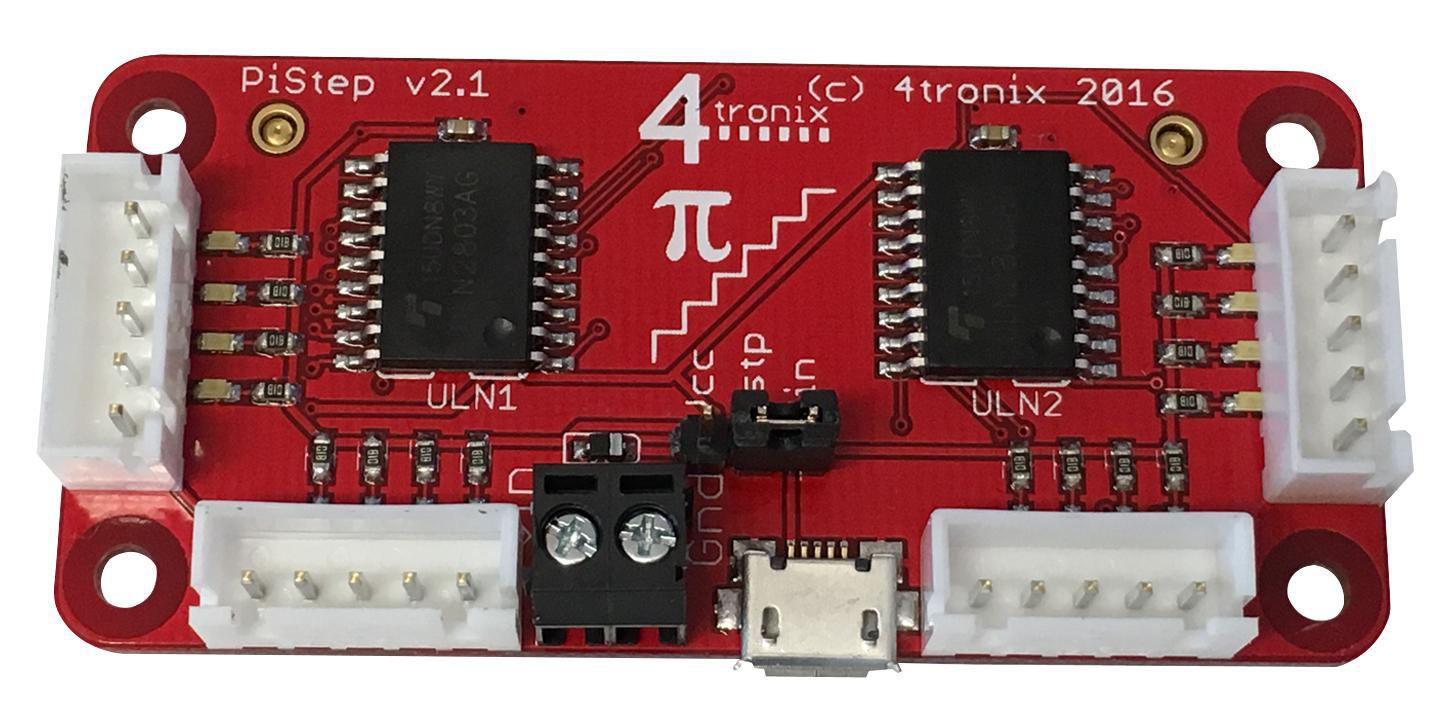

This neat little board plugs directly into the Raspberry Pi GPIO header and provides 4 connectors for small stepper motors.
Product Info
- Raspberry Pi Zero Form Factor, works with all versions of Raspberry Pi with 40pin GPIO connector
- Power Options:
- Raspberry Pi 5V
- 2-pin Terminal (whatever voltage is required for the motors)
- Micro USB - 5V only
- Pinouts:
- Physical pins 11, 12, 13, 15 for Motor A (GPIO 17, 18, 27, 22)
- Physical pins 16, 18, 22, 7 for Motor B (GPIO 23, 24, 25, 04)
- Physical pins 33, 32, 31, 29 for Motor C (GPIO 13,12,6,5)
- Physical Pins 38, 37, 36, 35 for Motor D (GPIO 20,26,16,19)
| Details | |
|---|---|
| Kit Contents: | Control Board |
| Important Product Info: | Fully Assembled - No Soldering Required |
| Country of Origin: | Great Britain |
