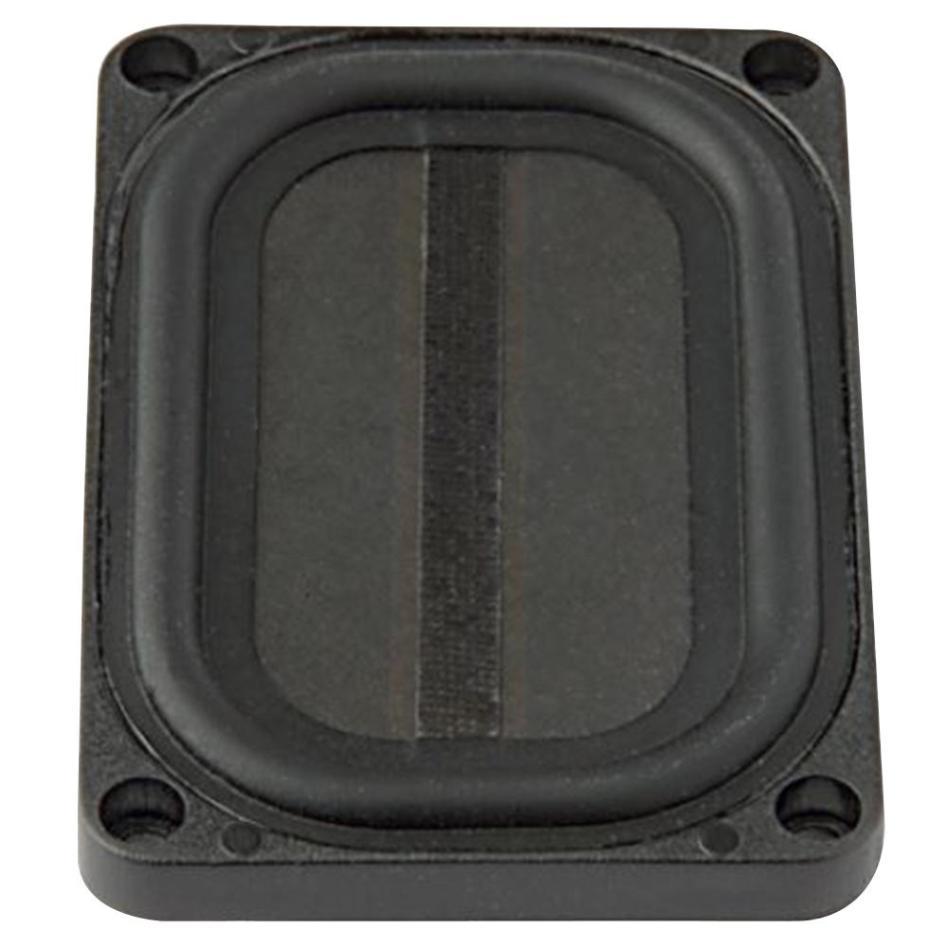

4W Full Range Driver 4x6cm 8R, IP63 - SC4.6 FL, 8OHM
4W Full Range Driver 4x6cm 8R, IP63 - SC4.6 FL, 8OHM
Regular price
£10.29 GBP
Regular price
Sale price
£10.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
4x6cm (1.6" x 2.4") full range speaker with coated wooden cone and stable plastic basket. Flat and lightweight design. Powerful neodymium magnet. Wide and balanced frequency response with good low range reproduction. Also suitable for small HiFi speakers.
Features
- Output power: 4W rms (max. 5W)
- Nominal impedance: 8R
- Frequency response: 100Hz to 20kHz
- Mean SPL: 80dB (1Wat1m)
- Resonant frequency: 200Hz
- Operating temperature: -25 to +70°C
- IP rating: IP63
- Dimensions (HxWxD): 61x42x13mm
- Weight: 34g
| Specifications | |
|---|---|
| Driver Type | Full-range |
| External Width - Metric | 40mm |
| Impedance | 8ohm |
| Power Rating Nom | 4W |
| Sound Level SPL | 80dBA |
| External Width - Imperial | 1.575" |
| Frequency Response Min | 100Hz |
| Frequency Response Max | 20kHz |
| Speaker Shape | Rectangular |
| Resonant Frequency | 200MHz |
| Speaker Mounting | Through Hole |
| Power Rating Max | 5W |
| External Length - Metric | 60mm |
| External Depth - Metric | 13mm |
| External Length - Imperial | 2.362" |
| External Depth - Imperial | 0.512" |
| Product Range | WHALE Ceiling Speakers |
| Country of Origin: | China |
