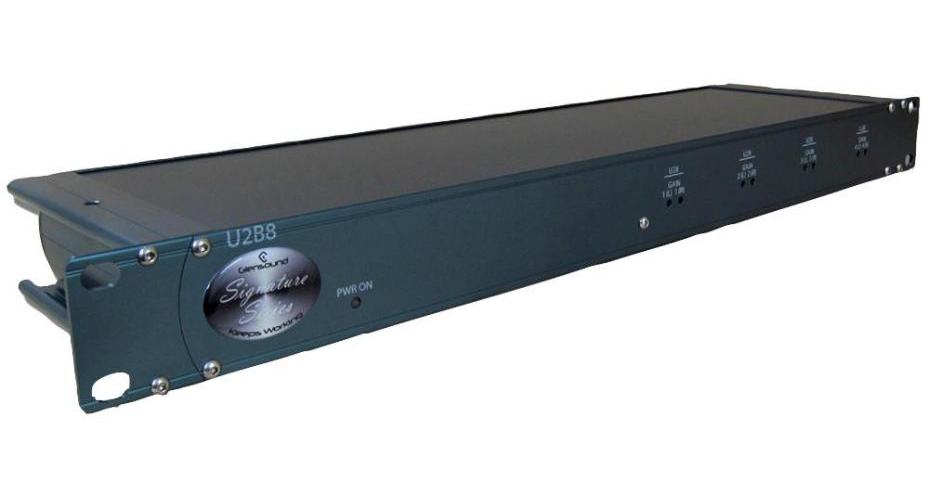

4x Stereo Unbal-to-Bal Audio Converter - U2B 8
4x Stereo Unbal-to-Bal Audio Converter - U2B 8
Couldn't load pickup availability
The Signature U2B8 is a broadcast specification quadruple stereo unbalanced to balanced analog audio interface that is equally suitable for professional & home studio use. Its primary job is to interface domestic type audio outputs (unbalanced) to the balanced audio inputs for broadcast and professional audio equipment. The U2B8 also provides variable gain to allow the lower level audio outputs to be raised to meet the higher level broadcast and pro audio standard. The stereo audio inputs (which can work as 8x mono) is on gold plated RCA phono connectors. This input is electronically isolated with RF filters to prevent extraneous signals, and fed via multi-turn preset gain controls on the rear panel to a pair of electronically balanced and isolated outputs on Neutrik XLR.
Features
- Input: 4x Unbalanced stereo electronically isolated on Gold Plated RCA phono socket
- Output: 4x Balanced stereo electronically balanced on Neutrik 3 pin XLR socket
- Can be used as 8x mono unbalanced to balanced converters
- Gain controls to adjust domestic to professional levels
- Wide range mains input & external DC backup
- Frequency response: 40Hz to 20KHz
- Input impedance: >22kR
- Output impedance: <50R
- THD: 0.04%
- Noise: -98dBA
- Power supply: 1x Filtered IEC, 100 to 240V AC, 47 to 63Hz
- DC input: 4 Pin Neutrik XLR
- 1RU rack mountable
- Dimensions (HxWxD): 44x445x123mm (no rack ears)
- Weight: 1.0kg
| Specifications | |
|---|---|
| Product Range | GLENSOUND Unbalanced-to-Balanced Audio Converters |
| Plug Type | UK |
| Product Contents: | U2B8, 1U rack ears, IEC mains cable 2m, handbook |
| Country of Origin: | Great Britain |
