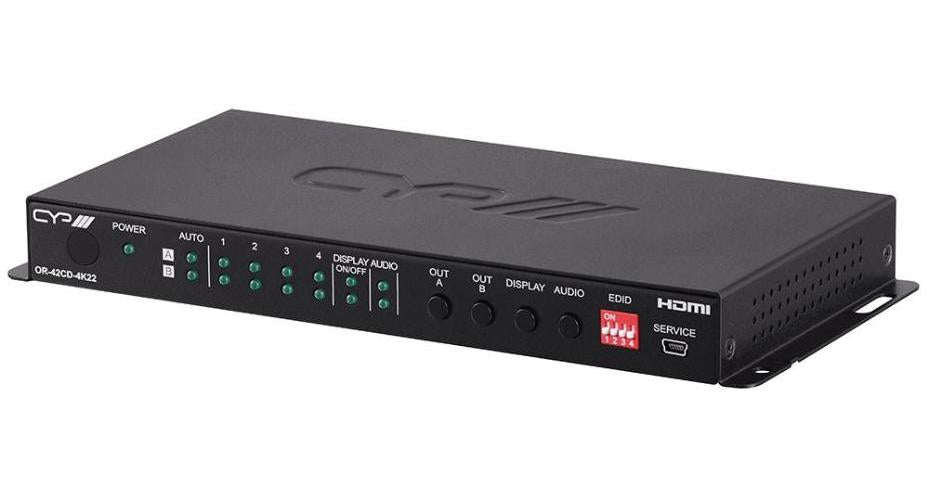

4x2 HDMI Matrix Switch with Audio De-Embedding - OR-42CD-4K22
4x2 HDMI Matrix Switch with Audio De-Embedding - OR-42CD-4K22
Regular price
£226.59 GBP
Regular price
Sale price
£226.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The OR-42CD-4K22 provides the ability to connect up to four 4K HDR HDMI sources to up to two 4K HDR HDMI displays and freely switch between them. This matrix fully support for 4K at 60Hz (4:4:4, 8- bit) signals as well as support for 16-bit Deep Colour, HDR (High Dynamic Range), 3D content, HD audio and other features defined by the HDMI 2.0 specification.
Features
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- Matrix switching with sequential input selection via front panel controls or discrete input selection via IR remote and RS-232
- Supports up to 4K UHD+ (18Gbps, 4K at 50/60Hz 4:4:4, 8-bit and HDR) video input and output
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input and output
- Supports pass-through of many audio formats including 8-channel LPCM, Bitstream, and HD Bitstream
- High-quality DAC provides local analogue stereo audio breakout from the selected HDMI output (LPCM 2.0 sources only)
- Independent, input-based EDID management with internal or external EDID options
- Basic display power automation via RS-232 and CEC
- Controllable via front-panel buttons, RS-232, and IR remote
- Inputs: 4x HDMI (4x HDMI uncompressed AV and Data), 1x Phoenix (3-pin) (console control RS-232), USB Type B (service port propriety data)
- Outputs: 2x HDMI (2x HDMI uncompressed AV and data), 3.5mm stereo mini-jack (analogue audio stereo(L/R)), Phoenix (3-pin) (display control RS-232)
| Specifications | |
|---|---|
| Country of Origin: | Taiwan |
