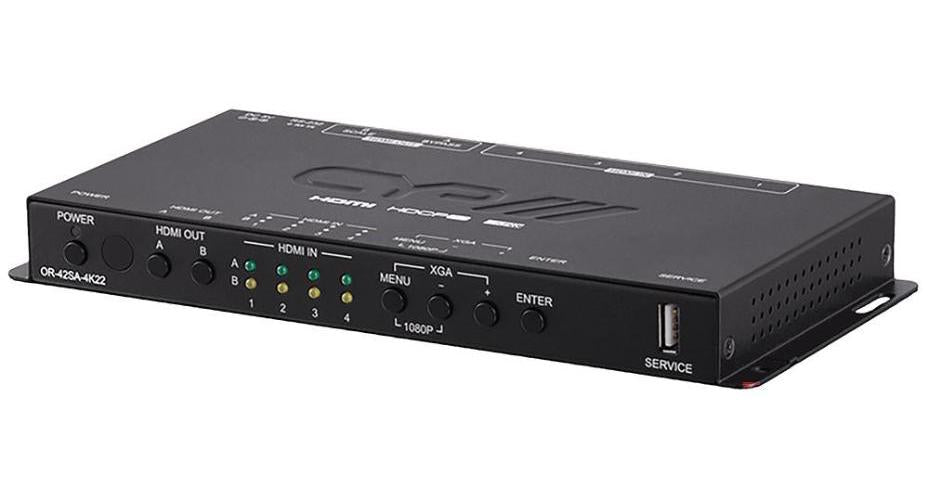

4x2 HDMI Matrix Switch with Scaled & Bypass Output 4K/6G - OR-42SA-4K22
4x2 HDMI Matrix Switch with Scaled & Bypass Output 4K/6G - OR-42SA-4K22
Regular price
£482.39 GBP
Regular price
Sale price
£482.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The OR-42SA-4K22 HDMI Switcher is a powerful scaling solution designed for live events, lecture theatres, broadcast applications and much more. The advanced scaling engine allows live adjustment of several picture elements including contrast, brightness, hue, noise reduction and RGB levels plus adaptive de-interlacing and frame rate conversion. Integrated auto-switching with signal dropout detection reverts to the last active connected source in the event of signal loss. Ideal for conference centres, live events and mission-critical applications. Control is handled via front panel, OSD, RS232 and IR.
Features
- HDCP 2.2 and HDCP 1.x compliant
- Advanced single-pass 4K scaling engine
- Supports up to 4K UHD
- Supports pass-through of many audio formats
- Scaled output supports adjustments to contrast, brightness, hue, saturation, sharpness, RGB levels, aspect ratio
- Advanced EDID and HDCP management
- Quick output resolution switching via hot keys
- Controllable via front-panel buttons with OSD, RS-232 or IR remote (supplied)
- HDMI Bandwidth: 600MHz/18Gbps
- Inputs: 4x HDMI, 1x Phoenix (3 pin)
- Outputs: 2x HDMI
- USB Type-A data control
- Power supply: 5V DC, 3A
- Dimensions (HxWxD): 25x231x108mm
- Weight: 650g
| Specifications | |
|---|---|
| Product Range | CYP HDMI Matrixes |
| Country of Origin: | Taiwan |
