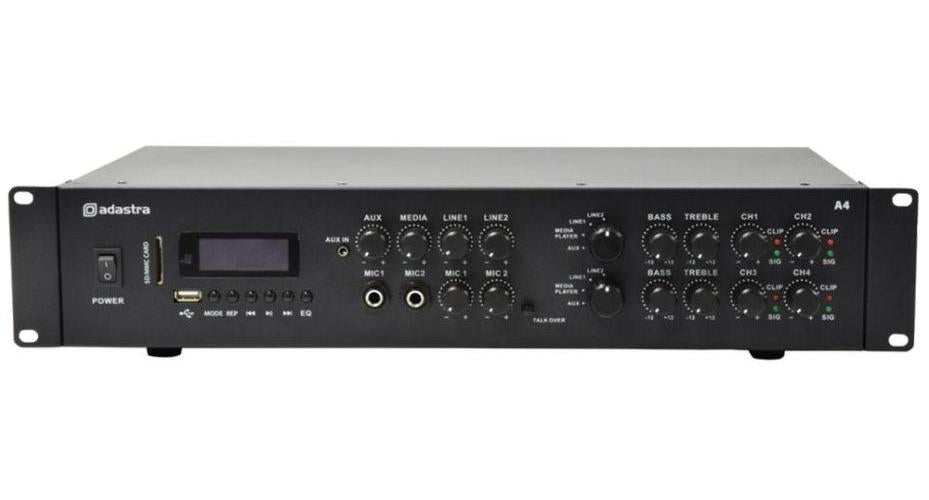

4x200W Dual Stereo Amplifier with USB/SD/FM/BT - A4
4x200W Dual Stereo Amplifier with USB/SD/FM/BT - A4
Couldn't load pickup availability
Fully featured PA amplifier with 2x independent stereo zone outputs and mixer section for 2x microphones and a stereo audio source. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner. A rotary switch for each output zone selects the stereo playback audio from a choice of 2x rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to both output zones at all times. 2 pairs of speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2x 8R speakers on each of the 4x channels to deliver up to 4x 200W. Designed to offer installers a comprehensive dual zone PA for bars, restaurants and function rooms.
Features
- Output power: 4x 200W at4R, 6x 100W at8R rms - Class D
- Inputs: 2x 6.3mm Jack (mono), Line1: L/R 6.3mm jack/RCA, Line2: L/R RCA
- Media player: USB/SD mp3 playback, FM tuner, BT (version 2.3)
- Auxiliary input: 3.5mm L/R Jack
- Speaker outputs: 2x 4-terminal Euroblock
- Line output: 4x RCA
- Output controls: 2x source select, Ch1- Ch4 level
- Input controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
- IR remote control provided
- Frequency response: 20Hz to 20kHz
- THD: <0.1% at 1kHz
- SNR: 92dB
- Input impedance: 20kR (balanced), 10kR (unbalanced)
- Protection: Thermal, over-current, over-voltage, short-circuit
- Power supply: 230V AC, 50Hz (IEC)
- 2U rack mountable
- Dimensions (HxWxD): 88x482x300mm
- Weight: 6.0kg
| Specifications | |
|---|---|
| Product Range | ADASTRA Zoning Amps |
| Plug Type | UK |
| Product Contents: | A4 amplifier, power lead, IR remote |
| Important Product Info: | Remote battery: 2x AAA |
| Country of Origin: | China |
