4x4 4K UHD 60Hz HDMI 2.0 Matrix Switch - PSG3532
4x4 4K UHD 60Hz HDMI 2.0 Matrix Switch - PSG3532
Regular price
£133.29 GBP
Regular price
Sale price
£133.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

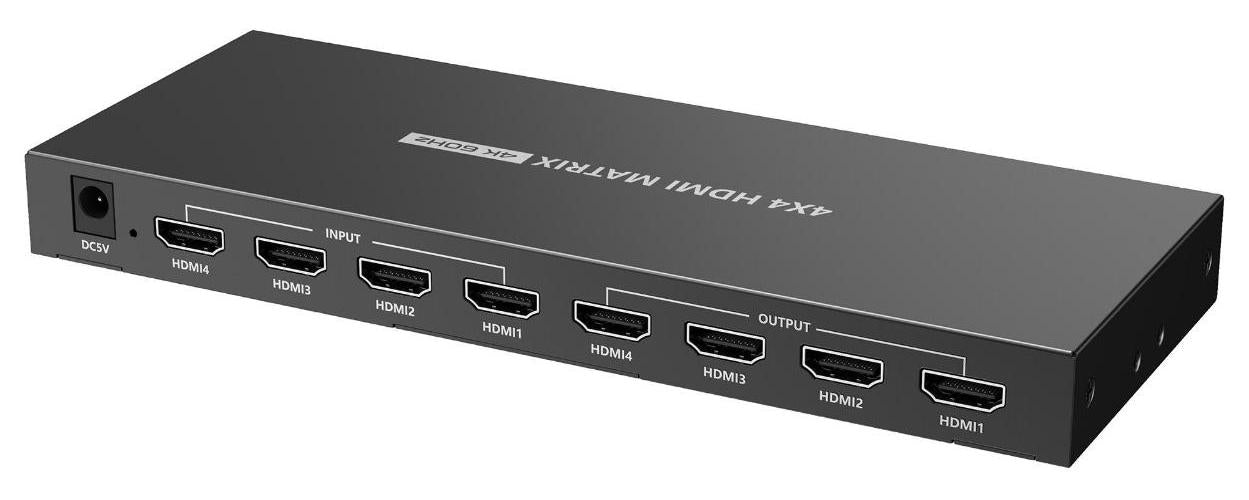

The PSG3532 is a high performance HDMI distribution system, allowing you to easily switch between four HDMI sources and four HDMI outputs in any arrangement. Supporting resolutions up to 4K Ultra HD with HDR10, the switch delivers stunning image quality to every connected display.The switch provides intuitive and convenient control options with a wireless IR remote, physical switching buttons and support for RS232 command systems.
Features
- Supports HDMI 2.0 resolutions up to 4K UHD at 60Hz with HDR & YUV 4:4:4
- Dolby Digital Plus, Dolby Digital 7.1, Dolby TrueHD, Dolby Atmos, DTS/DTS-HD and LPCM 7.1 audio format support
- Intuitive control via wireless IR remote, switching buttons and RS232 commands
- Maximum transmission bandwidth up to 18Gb/s
- Any two of the four HDMI outputs can support automatic downscaling
- EDID passthrough with DIP switches for manual settings, provides 16 settings
- HDMI 2.0 and HDCP 2.2/HDCP 1.4 compliant
- Durable metal housing with Lightning and surge protection
- ESD protection: Contact discharge (±4kV), Air discharge (±8kV)
- Connections: 4x HDMI in, 4x HDMI out, RS232
- Dimensions (HxWxD): 21x210x80mm
| Specifications | |
|---|---|
| Product Contents: | Switch, AC adaptor, IR remote, terminal block, mounting kit and user guide |
| Country of Origin: | China |
