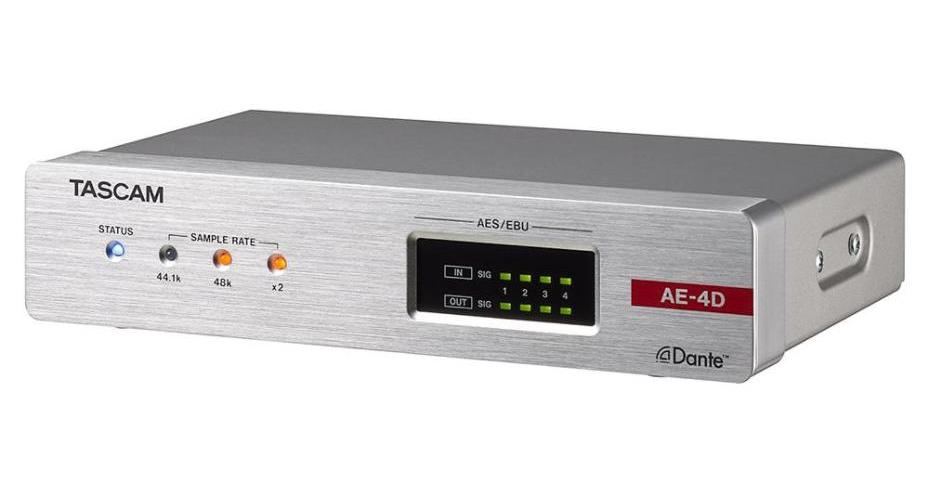

4x4 AES/EBU-Dante Converter PoE - AE-4D
4x4 AES/EBU-Dante Converter PoE - AE-4D
Regular price
£658.39 GBP
Regular price
Sale price
£658.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The AE-4D is an exquisite AES/EBU input/output unit that converts up to 4x AES/EBU signals into 4x Dante audio channels and the other way around. It has an input sample rate converter that supports audio resolutions up to 96kHz /24-bit and uses balanced XLR connectors for AES/EBU input and output. DSP functions in this model are limited to input and output faders and mute. Remote control is possible via 2x different software applications available for Mac, Windows, iOS and Android devices: Tascam DCP Connect for configuration and Tascam EZ Connect for end users, both of which are simple to use and included with the units.
Features
- 2x AES/EBU inputs on balanced XLR connectors with sampling rate converter
- 2x AES/EBU outputs on balanced XLR connectors
- Front panel indicators for operation status, output signals and current sample rate
- Attachment brackets included for mounting the unit i.e. under a table top
- Half-rack size chassis (1U)
- Tascam DCP Connect offers full access to virtually all settings (compatible with Windows/Mac/iOS/Android devices)
- Sampling rate: 44.1/48/88.2/96 kHz,16/24-bit
- 2x LAN RJ45 1000BaseT connectors for Dante daisy-chaining
- Powered by PoE class 0 (3W)
- Dimensions (HxWxD): 45x214x136mm
- Weight: 795g
| Specifications | |
|---|---|
| Product Range | TASCAM AES-Dante Converters |
| Plug Type | UK |
