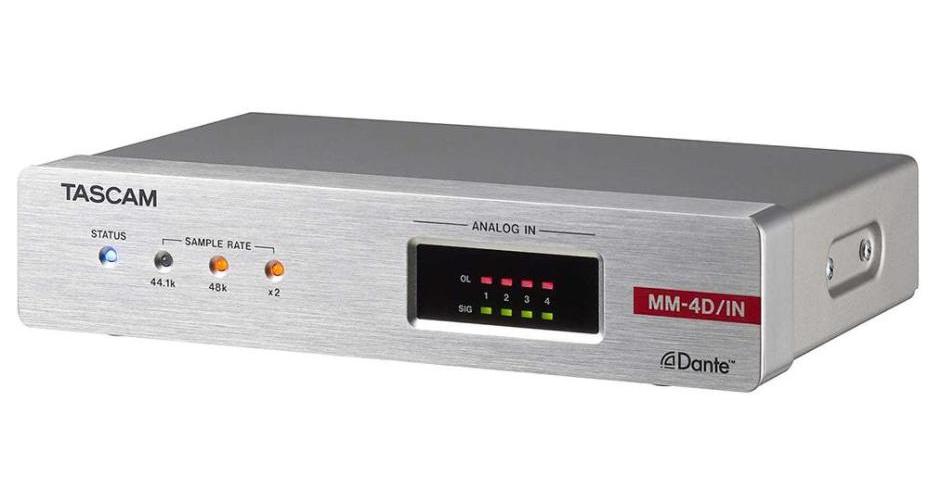

4x4 Euroblock Analog-Dante Converter with Mixer/DSP - MM-4D-IN-E
4x4 Euroblock Analog-Dante Converter with Mixer/DSP - MM-4D-IN-E
Couldn't load pickup availability
The MM-4D/IN is an exquisite analog input unit that converts 4x mic/line input signals into 4x Dante output signals. In addition, it also supports 4 channel Dante input as well, making it possible to use virtually any audio source within the established Dante network. This model can be used for a wide range of applications. A key advantage of the product range is the DSP processor built into each unit. By providing not only mixing functions and EQ but also dynamic processing, automatic level control, auto-ducking, routing and noise compensation, even small systems can fully perform without additional signal processing or mixing devices. Remote control is possible via 2x different software applications available for Mac, Windows, iOS and Android devices: Tascam DCP Connect for configuration and Tascam EZ Connect for end users.
Features
- Front panel indicators for operation status, output signals and current sample rate
- Up to 50x scene presets can be saved
- Control software available (compatible with Windows/Mac/iOS/Android devices): Tascam MX Connect for system integrators, Tascam EZ Connect for end users
- Attachment brackets included for mounting the unit i.e. under a table top
- Half-rack size chassis (1U)
- Sampling rate: 44.1/48/88.2/96 kHz,16/24-bit
- Analog inputs: 4x Euroblock (balanced) 3.81mm pitch
- DATA/DATA+PoE connectors RJ45 Dante 1000BaseT
- Frequency response: 20Hz to 40kHz
- THD: 0.002%
- SNR: 108dB
- Crosstalk: 100dB
- Dynamic range: 108dB
- Operating temperature: 0 to 40°C
- Powered by PoE class 0
- Dimensions (HxWxD): 45x214x136mm
- Weight: 885g
| Specifications | |
|---|---|
| Product Range | TASCAM Analog-Dante Converters |
| Plug Type | UK |
