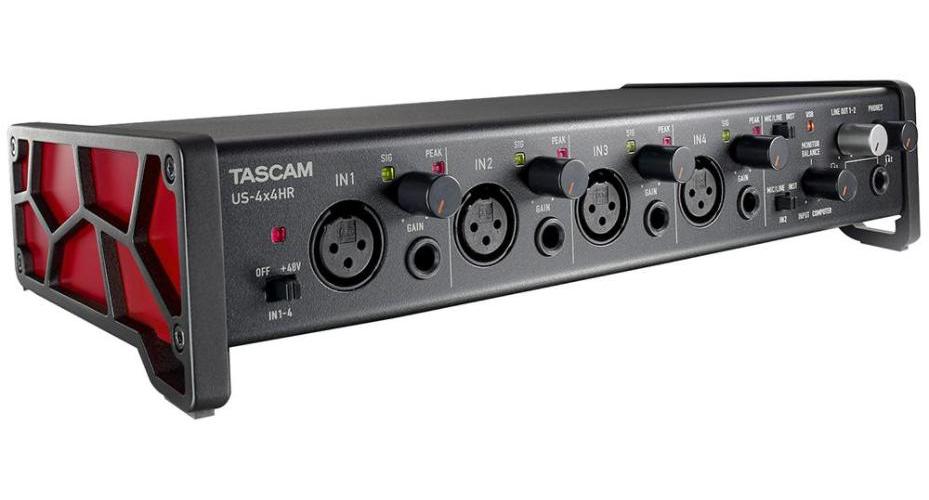

4x4 High-Res USB Audio/MIDI Interface - US-4X4HR
4x4 High-Res USB Audio/MIDI Interface - US-4X4HR
Couldn't load pickup availability
The US-4x4HR provides 4x mic/line/instrument switchable inputs and 4x balanced line outputs as well as MIDI I/O to your Windows or Mac computer or your iPhone or iPad. This interface is ideal for music creation and home recording with high demands on simple operation and studio-quality sound. The included loopback function and support for Open Broadcaster Software (OBS Studio), however, makes it also an excellent choice for podcast creation and live streaming. The compact US-4x4HR incorporates a wealth of features, including high audio resolution up to 24-bit/192kHz, ultra-low latency with a Windows buffer size starting at four samples, Ultra-HDDA mic preamplifiers with 48V phantom power for superior sound quality with ultra-low noise, a robust USB Type C connector, and a rich assortment of included software to start producing audio right away. Ideal for a musician, producer or home-recordist who needs a solid, uncluttered, easy-to-use audio interface with superb sound quality.
Features
- Provides 4x audio inputs and 4x audio outputs as well as a MIDI interface to a Windows or Mac computer or iOS device
- Sampling: 44.1/48/88.2/96/176.4/192kHz (24-bit)
- Mic inputs: 4x XLR 3 pin
- Monitor mix control for adjusting the level balance between signals from external devices and signals from the computer
- Line output: 2x 6.3mm Jack 1-2, 2x 6.3mm Jack 3-4
- Headphones output: 6.3mm standard stereo Jack
- Switchable 48V phantom power on XLR inputs
- Ultra-low-noise mic preamps
- Guitars can be directly connected enabling the use of 3rd-party plug-in effects
- Direct monitor option for low-latency monitoring
- A loopback function allows two audio channels from the computer to be merged with the input signals and send this mix to the streaming or communication software
- Switchable auto power save mode to reduce battery consumption on the laptop/tablet computer in mobile use
- Rugged aluminum body
- Angled industrial design for ease-of-use on a desktop
- MIDI IN connector: 5 Pin DIN
- MIDI OUT connector: 5 Pin DIN
- SNR: >=108dB
- Frequency response: 20Hz to 40kHz
- THD: 0.0013%
- Wide input gain range of 56dB, ideal for dynamic microphones
- Crosstalk: 95dB or more
- Power supply: USB Micro B type 5V DC, or dedicated power adaptor
- Dimension (HxWxD): 65x296x160mm
- Weight: 1.6kg
| Specifications | |
|---|---|
| Product Range | TASCAM Audio Interfaces USB |
| Plug Type | USB |
| Important Product Info: | Requires CPU/processor speed of 2GHz or faster (dual core processor), Memory 2 GB or more - for appropriate operation |
