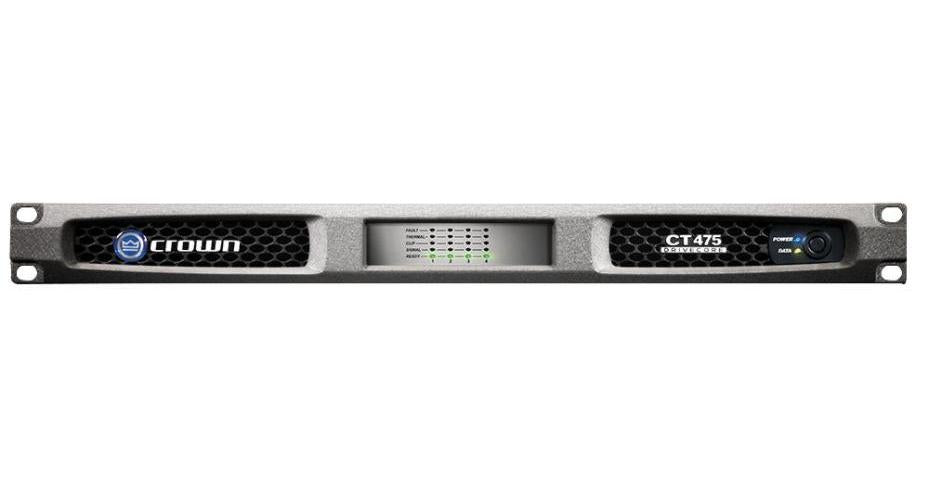

4x75W Power Amplifier 2-16R, Rackmountable - CT475
4x75W Power Amplifier 2-16R, Rackmountable - CT475
Couldn't load pickup availability
Crown's CT-475 amplifier delivers studio-grade sound in 1U rack space with 4x channels of 75W power. Performance is exemplary in every aspect with SNR better than 110dB and THD below 0.05% across the full audio bandwidth. Powering this remarkable amplifier is the pioneering technology of DriveCore™, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design. Typical applications include boardrooms, video and teleconferencing, VIP and training suites, upscale restaurants and retail outlets to name just a few. Representing next generation technology, the ComTech DriveCore™ proves that big things really do come in small packages.
Features
- Output power: 4x 75W at 4R/8R rms - Class D
- Inputs: 4x 3 Pin block connectors (balanced), 1x AUX 3 Pin block connector
- Amp configuration modes: Controlled via DIP switches
- Flexible input routing
- Speaker outputs: 4x 2 Pin block connectors
- Integrated life-safety features
- Amplifier is stable for 2R to 16R loads
- Patented feedback and protection circuits
- Convection cooled
- Frequency response: 20Hz to 20kHz
- THD: <0.05% at 1kHz
- SNR: 110dB
- Voltage gain: 25dB
- Sensitivity: 1.4V
- Universal power supply
- Dimensions (HxWxD): 45x483x386mm
- Weight: 4.54kg
| Specifications | |
|---|---|
| Product Range | CROWN Power Amps |
| Plug Type | UK |
| Country of Origin: | China |
