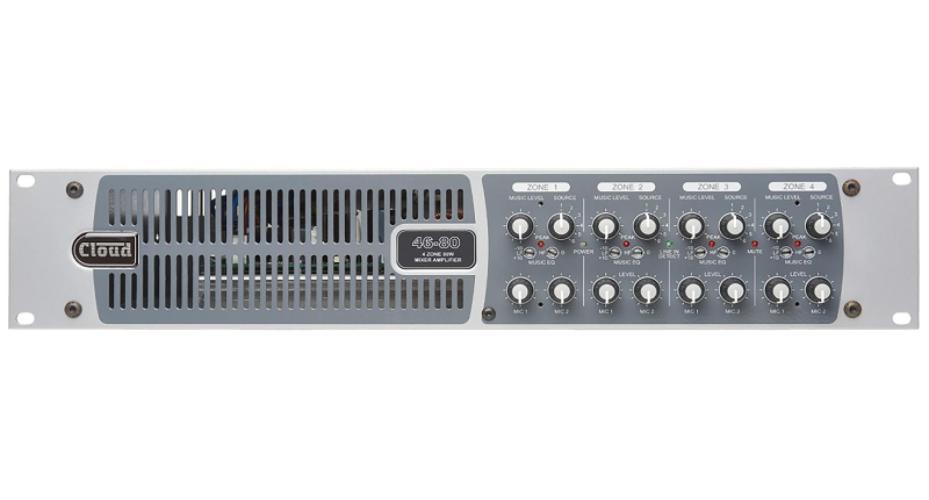

4x80W Zoning Mixer Amplifier 4R, 2U - 46-80
4x80W Zoning Mixer Amplifier 4R, 2U - 46-80
Couldn't load pickup availability
The Cloud 46-80 is a versatile zoning, rackmounting audio mixing amplifier. It combines simple control of background music, microphone paging and power amplification for up to 4x output zones in a single unit. It has extensive optional remote control facilities and is ideal for installations in environments such as pubs, bars, hotels, clubs, leisure and fitness centres, retail and other commercial premises. Each mono zone is driven by 80W power amplifier. If less than 4x separate zones are required, the power stages may be paralleled by moving internal jumpers to permit dual stereo, quad mono or stereo + dual mono operation with increased output power accordingly. The power stages have extensive protection circuitry to safeguard both the amplifier and the connected speakers.
Features
- Inputs: Mic1, Mic2, Mic1 access, 4x stereo line, music mute, RS232 - Phoenix terminal blocks; 2x line RCA L/R, 1x page mic RJ45, 1x facility port RJ45
- Outputs: 2x AUX, 4x zone, utility loop - Phoenix terminal blocks
- Dip switches to choose various modes and stages
- 15V phantom power selectable for each mic input
- Zone 1 Facility Port for connection of optional remote input plates
- Compatible with standard Cloud remote control panels
- User-selectable Automatic Power Down for maximum energy efficiency
- Peak limiter to protect power amplifier stages and loudspeakers
- Convection cooled (no fan) secures silent operation
- Output power: 4x 80W at 4R
- Front panel user controls for music source, music level and level of each microphone, for each zone
- Front panel indicators for amplifier power status, signal presence detection, Music Mute status and per-zone signal peak
- Gain and HF/LF EQ adjustment for mic input
- 19" rackmounted 2U
- Frequency response: 20Hz to 20kHz
- SNR: 88dB
- Protection: Fixed level signal limiter, protection against DC, over current, over temperature
- THD: <0.01%
- Power supply: 85 to 243V AC, 47 to 63Hz
- Dimensions (HxWxD): 88x483x320mm
- Weight: 5.5kg
| Specifications | |
|---|---|
| Product Range | CLOUD Zone Mixer Amps |
| Plug Type | UK |
| Country of Origin: | Great Britain |
