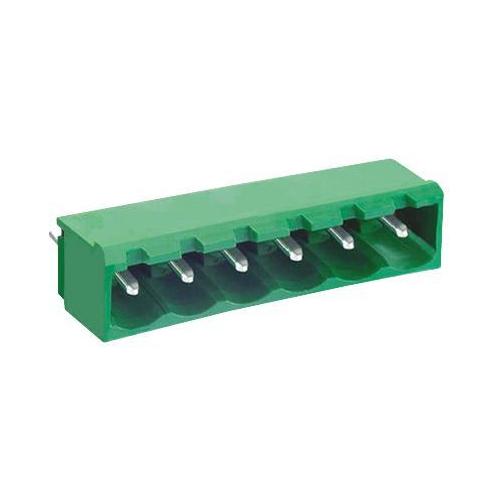

5.08m Pluggable Terminal Block Header, 6 Way, Vertical, 16A - MC000204
5.08m Pluggable Terminal Block Header, 6 Way, Vertical, 16A - MC000204
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MC000204 is a 6-way 16A pluggable Terminal Block Header with tin-plated brass solder pin and green polyamide 66 insulating body. It has through-hole vertical block orientation and 2000VAC minimum insulation withstand voltage.
Product Info
- >2000MR at 500VDC Insulation resistance (Maximum)
- -40 to 105°C Operating temperature range
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
| Details | |
|---|---|
| Gender | Header |
| Pitch Spacing | 5.08mm |
| No. of Positions | 6Ways |
| Rated Current | 16A |
| Rated Voltage | 300V |
| Block Orientation | Through Hole Vertical |
| Country of Origin: | Taiwan |
