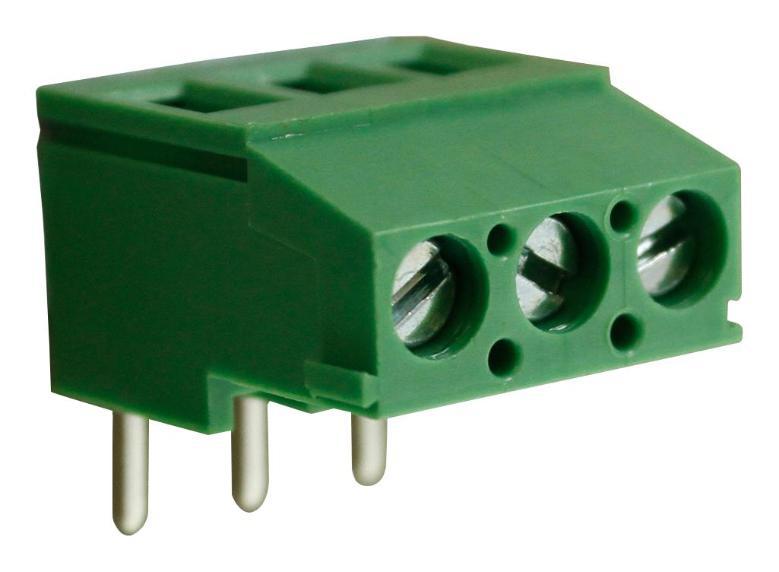

5.08mm High Power 90° Rising Clamp Terminal Block, 3-Pole, 20A - CAMDENBOSS
5.08mm High Power 90° Rising Clamp Terminal Block, 3-Pole, 20A - CAMDENBOSS
Regular price
£1.89 GBP
Regular price
Sale price
£1.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The CTBP0758/3 from Camdenboss is a 5.08mm pitch high power 90? rising clamp terminal block with 3 poles double interlocking mechanism for increased strength. It is moulded in green UL94-V0 flame retardant PA66 material. Approved by UL and VDE.
Features
- Wire size of 2.5mm² (26AWG to 12AWG)
- Professional rising clamp terminal
- Guided pin alignment
- Rating is UL=20A/300V, VDE=20A/250V
- Insulation resistance is 500Mohm/500V withstand voltage is AC2000V/1min, 20mohm contact resistance
- Working temperature range from -40°C to 105°C
- Brass, nickel plated rising clamp
- Tin plated brass pin
- M3 steel, zinc plated screws
- 15.24mm length
| Specifications | |
|---|---|
| Pitch Spacing | 5.08mm |
| No. of Positions | 3Ways |
| Wire Size AWG Min | 26AWG |
| Wire Size AWG Max | 12AWG |
| Conductor Area CSA | 2.5mm² |
| Wire Connection Method | Screw |
| Rated Current | 20A |
| Rated Voltage | 300V |
| Block Orientation | Through Hole Vertical |
| Product Range | CamBlock Plus Series |
| Country of Origin: | China |
