5.08mm PCB Terminal Block, 2 Way, 26AWG to 12AWG, Screw - MC24366
5.08mm PCB Terminal Block, 2 Way, 26AWG to 12AWG, Screw - MC24366
Regular price
£1.49 GBP
Regular price
Sale price
£1.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

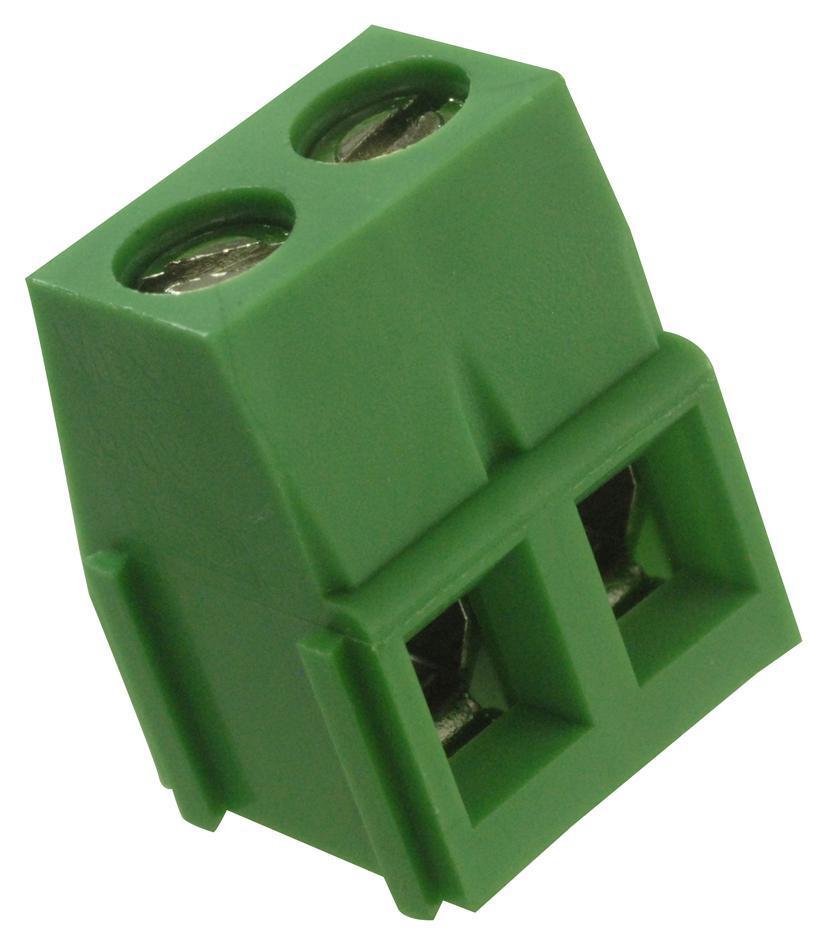

The MC24366 is a wire to board Terminal Block with polyamide 66 (UL940-0) housing and nickel-plated cage clamp.
Product Info
- Tin-plated Brass Terminal
- M2.6 Nickel-plated Steel Screw
- -40 to 105°C Operating Temperature
- 7lb-inch Screw Torque
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
| Details | |
|---|---|
| Pitch Spacing | 5.08mm |
| No. of Positions | 2Ways |
| Wire Size AWG Min | 26AWG |
| Wire Size AWG Max | 12AWG |
| Wire Connection Method | Screw |
| Rated Current | 16A |
| Rated Voltage | 300V |
| Block Orientation | Through Hole Right Angle |
| Country of Origin: | China |
