5.08mm Pluggable DIN Rail Horizontal PCB Terminal Block, 12 Poles, 62.4mm - CAMDENBOSS
5.08mm Pluggable DIN Rail Horizontal PCB Terminal Block, 12 Poles, 62.4mm - CAMDENBOSS
Regular price
£7.79 GBP
Regular price
Sale price
£7.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

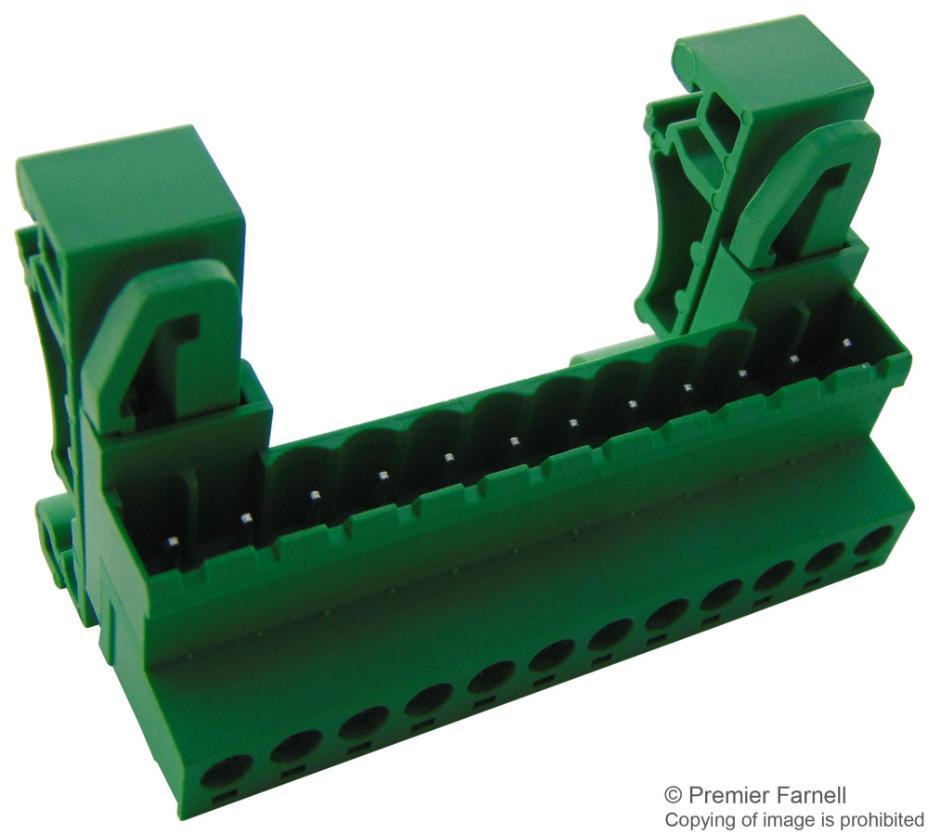

The CTBPD96HJ/12 from Camdenboss is a 5.08mm pitch, DIN rail mounted inverted/reverse, female, horizontal PCB terminal block with 12 poles. It is moulded in green UL94-V0 flame retardant PA66 material. Approved by cRUus.
Features
- Polarised mouldings
- Can be reversed on DIN clips
- Wire size is 2.5mm² (28AWG to 14AWG)
- Rating of UL=15A/300V IEC 20A/450V
- Insulation resistance is 500MR/500V, withstand voltage is AC2000V/1min, 20mR contact resistance
- Working temperature range from -40°C to 105°C
- Tin plated brass pin, nickel plated brass clamp
- M3 steel, zinc plated screw
- 62.4mm length
| Specifications | |
|---|---|
| No. of Positions | 12Ways |
| Wire Size AWG Min | 28AWG |
| Wire Size AWG Max | 14AWG |
| Conductor Area CSA | 2.5mm² |
| Wire Connection Method | Screw |
| Rated Current | 20A |
| Rated Voltage | 450V |
| Product Range | CTBPD96HJ Series |
| Country of Origin: | China |
