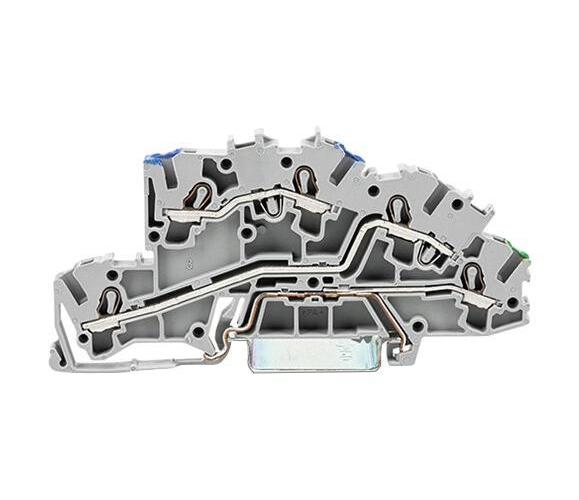

5 Conductor Multi Level Installation Terminal Block with Operating Slots and Push In Cage Clamp, 22AWG to 12AWG, 400V, 32A, Grey - 2003-7646

5 Conductor Multi Level Installation Terminal Block with Operating Slots and Push In Cage Clamp, 22AWG to 12AWG, 400V, 32A, Grey - 2003-7646

£4.29 GBP
£4.29 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Features

  • 35mm DIN rail mounted terminal block with Push-In CAGE CLAMP® technology
  • Push-in wire termination for faster installation
  • Potential marking: N/L/PE
  • Fits cable of size 0.25mm2 - 4mm2 / 22 AWG to 12 AWG
  • Nominal cross-section: 2.5mm2
  • Nominal voltage: 400V
  • Rated Current: 24A
  • Front entry wiring
  • Screwless connection

Specifications
No. of Positions 5Ways
Wire Size AWG Min 22AWG
Wire Size AWG Max 12AWG
Conductor Area CSA 2.5mm2
Wire Connection Method Push In
Rated Current 24A
Rated Voltage 250V
No. of Levels 3
Product Range TOPJOB S 2003-764x Series

EAN: 4044918925617
Manufacturer Part Number:
