5-Pole Male XLR Chassis Connector - NEUTRIK

5-Pole Male XLR Chassis Connector - NEUTRIK

£9.19 GBP
£9.19 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

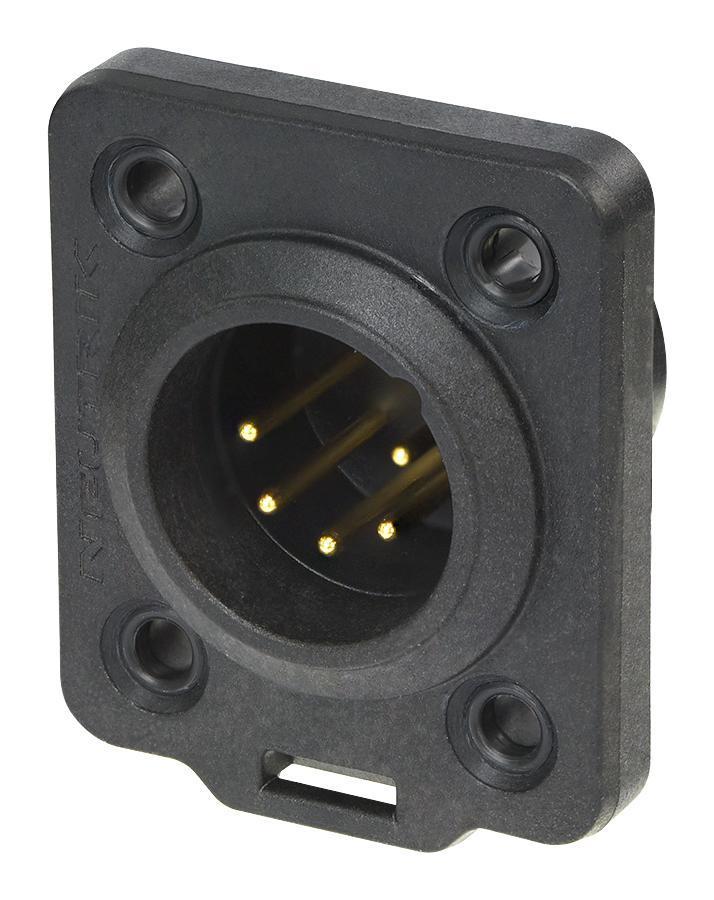

The NC5MDX-TOP is a male heavy duty 5-Pole XLR chassis connector.

Product Info

  1. Heavy-duty sealed XLR connector for harsh and demanding environment
  2. Outdoor protection according to IP65 and UL50E
  3. Uses high impact UV-resistant materials
  4. Maintains sealing when in use and when disconnected
  5. Capacitance between contacts: <4pF
  6. Contact resistance: <5mR
  7. Dielectric strength: 1.5kVdc
  8. Insulation resistance: >10GR (Initial)
  9. Rated current: 16A (per contact)
  10. Rated Voltage: <50V

Details
No. of Contacts 5Contacts
Gender Plug
Connector Mounting Chassis Mount
Contact Plating Gold Plated Contacts
Connector Body Material Nylon 6.6 (Polyamide 6.6) Body
Product Range X-TOP series
Country of Origin: Liechtenstein

EAN:
Manufacturer Part Number:
