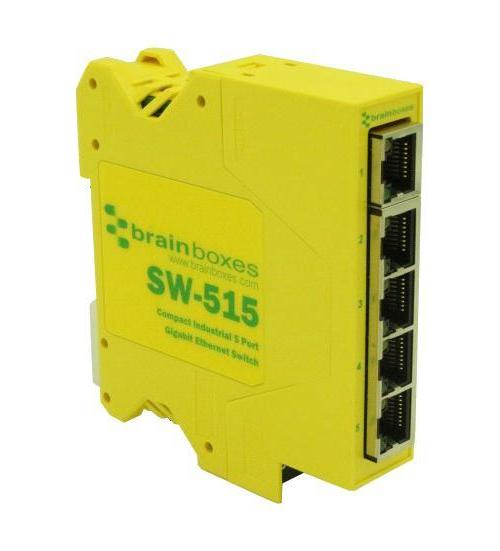

5 Port Industrial Unmanaged Gigabit Ethernet Switch, DIN Mountable - SW-515
5 Port Industrial Unmanaged Gigabit Ethernet Switch, DIN Mountable - SW-515
Regular price
£129.89 GBP
Regular price
Sale price
£129.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
High speed industrial 5 port Gigabit Ethernet switch that is designed to be suitable for a range of factory, vehicle and marine applications.
Features
- Extended operating temperature range for use in harsh environments (-40°C to +80°C)
- Each Ethernet port is magnetically isolated
- Auto MDI/MDI-X crossover support on all ports
- Power consumption is optimised based on the status of the link device
- Dual redundant power input (+5V DC to +30V DC)
- Slim profile IP20 rated non-conducting polyamide case
- Integrated DIN rail mounting with ground
- Easily wireable and removable screw terminal block
- Plug and play, no software needed
| Specifications | |
|---|---|
| No. of Ports | 5Ports |
| Ethernet Switch Application | Industrial |
| Ethernet Switch Type | Unmanaged Gigabit Ethernet |
| Ethernet Switch Mounting | DIN Rail |
| Port Types | RJ45 x 5 |
| Network Speeds | 10Mbps, 100Mbps, 1Gbps |
| Input Voltage Type | VDC |
| Product Range | Brainboxes SW-5xx Industrial Switches |
| Product Contents: | Switch and user guide |
| Country of Origin: | Great Britain |
