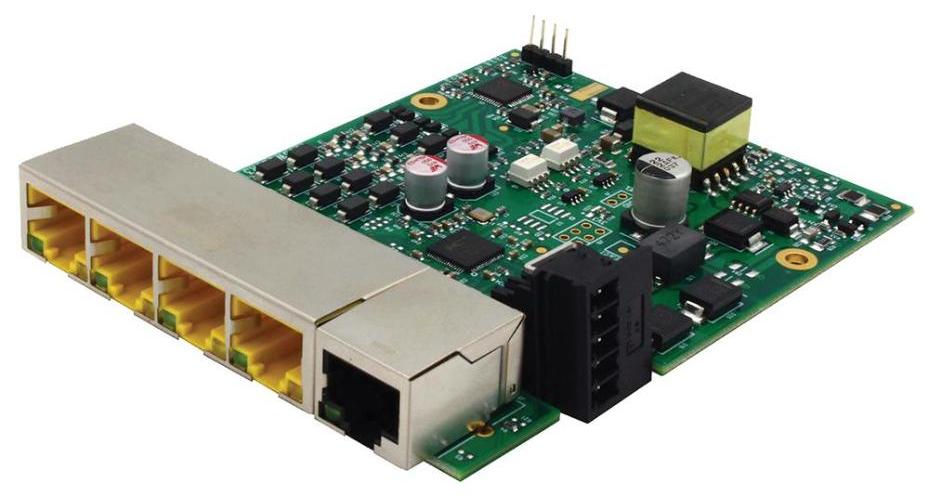

5 Port Industrial Unmanaged PoE+ Fast Ethernet Switch, Embedded - SW-125
5 Port Industrial Unmanaged PoE+ Fast Ethernet Switch, Embedded - SW-125
Regular price
£187.79 GBP
Regular price
Sale price
£187.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
High speed unmanaged network switch with an uncased design, ideal for use in embedded applications. Additional PoE capability allows you topower and data to remote CCTV cameras, access points and other PoE enabled devices.
Features
- Ports 1-4 feature PoE+ capability with 90W PoE power budget (30W per port)
- Each Ethernet port is magnetically isolated
- Wide operating temperature range for use in industrial environments (-40°C to +70°C)
- Dual redundant power input (+44V to +57V DC)
- Power consumption is optimised based on the status of the link device
- Auto MDI/MDI-X crossover support on all ports
- Easy wire removable screw terminal block
- Mounting holes are connected to functional earth
| Specifications | |
|---|---|
| No. of Ports | 5Ports |
| Ethernet Switch Application | Industrial |
| Ethernet Switch Type | Unmanaged PoE Fast Ethernet |
| Ethernet Switch Mounting | DIN Rail |
| Port Types | RJ45 x 5 |
| Network Speeds | 10Mbps, 100Mbps |
| Input Voltage Type | VDC |
| Product Range | Brainboxes SW-1xx Industrial Switches |
| Product Contents: | Switch and user guide |
| Country of Origin: | Great Britain |
