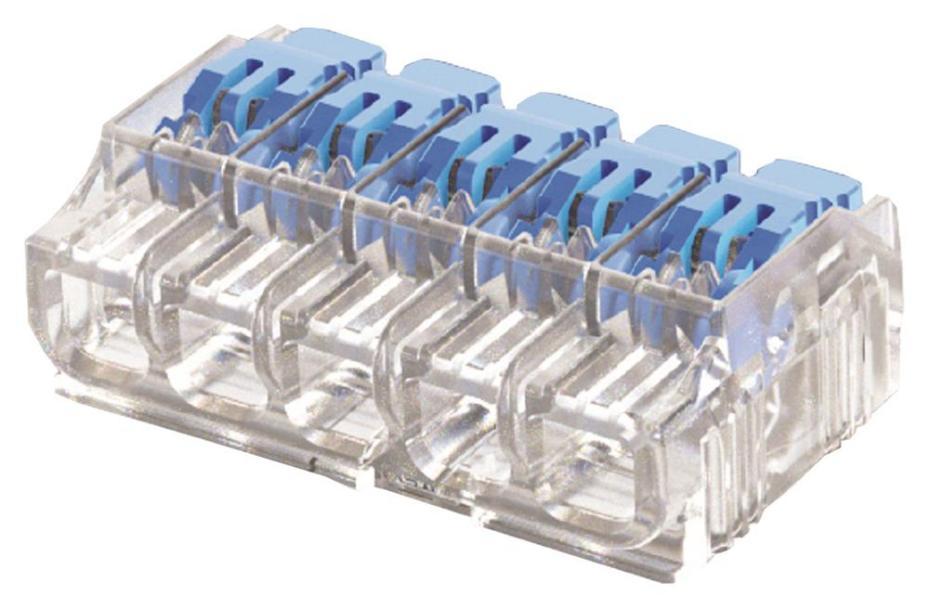

5 Way Gen II Lever Wire Connectors, 4mm2, 24 AWG to 12 AWG, 450V AC, 32A, Pack of 30 - 30-0095
5 Way Gen II Lever Wire Connectors, 4mm2, 24 AWG to 12 AWG, 450V AC, 32A, Pack of 30 - 30-0095
Regular price
£18.59 GBP
Regular price
Sale price
£18.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- For use in all applications up to 32A including lighting, access control, radial and final ring circuits
- Releasable connector - for solid, stranded and flexible wires
- Innovative levers - opens in the opposite direction of insertion points
- Compact design - suits tight spaces
- Easy to use - no need to lift the levers when using on solid wire
- Continuity check port - for testing
- Clear shell - allows for verification of connection
- Secure your cables in seconds - no screwdriwer, no crimping, just strip, push, connect
- Wire clamping range - 0.2mm2 to 4.0mm2 (24 - 12 AWG for solid and rigid stranded wires (7 strands) and 0.14mm2 to 4.0mm2 (24 - 12 AWG) for flexible wires
- BS 7671:2008 (18th Edition), IEC 60998 and UL 486C compliant
- CE, UKCA, UL and ENEC approved
| Specifications | |
|---|---|
| No. of Positions | 5Ways |
| Wire Size (AWG) | 24AWG to 12AWG |
| Conductor Area CSA | 4mm2 |
| Wire Connection Method | Push In |
| Rated Current | 32A |
| Rated Voltage | 450V |
| Country of Origin: | Austria |
