5 Way Vertical Battery Header - 5787446-1
5 Way Vertical Battery Header - 5787446-1
Regular price
£6.09 GBP
Regular price
Sale price
£6.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

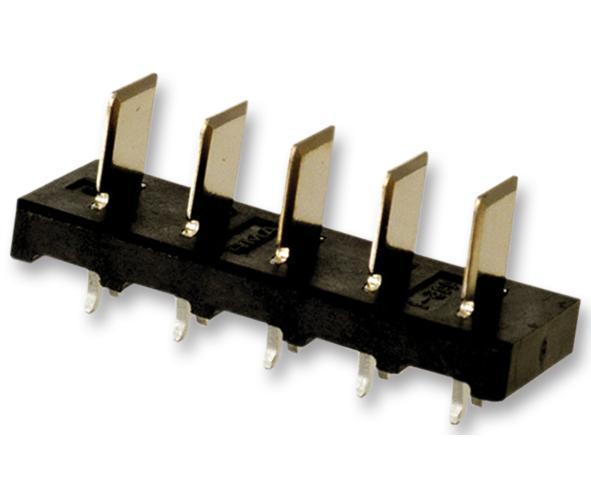

The 5787446-1 is a 5-way Battery Header for 5mm pitch battery plug assemblies. It has vertical mount angle and retentive solder mount type with through hole terminal. Polyphthalamide construction, UL94V-0 rated, black housing and brass, plated 0.0001-inch minimum tin on solder tail over 0.000075-inch minimum nickel overall contacts.
Features
- Tin-plated solder tail
- 2.54μm Contact mating area plating thickness
| Specifications | |
|---|---|
| Battery Terminals | Through Hole |
| Contact Material | Brass |
| Contact Plating | Tin Plated Contacts |
| Country of Origin: | China |
