500W ATX PSU with Passive PFC - A-500BR-V2
500W ATX PSU with Passive PFC - A-500BR-V2
Regular price
£21.49 GBP
Regular price
Sale price
£21.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

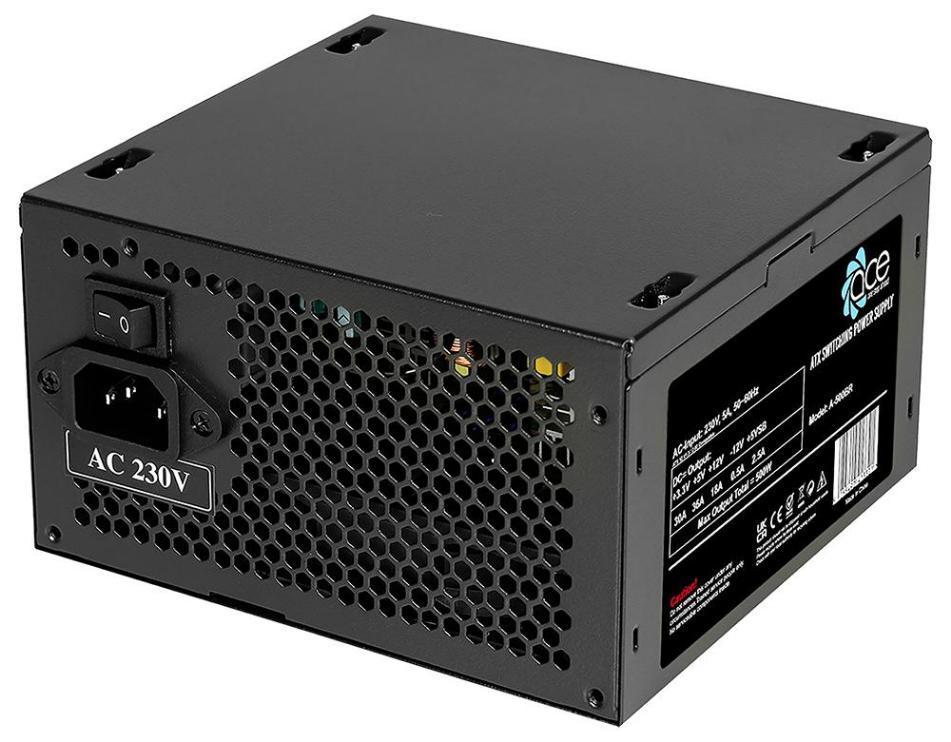

Reliable, cost effect power supply that provides a stable foundation for your PC system. The PSU is equipped with a 12cm cooling fan and utilises honeycomb ventilation design to ensure optimal airflow at all times.
Features
- Outputs: 3x SATA, 2x 4-pin Molex and 1x FDD connector
- 20+4 pin Motherboard main connector
- 12cm Silent black fan
- ATX 12V compliant for all types of CPU and motherboard
- OVP / UVP/ OPP Protection
- Passive Power Factor Control (PFC)
| Specifications | |
|---|---|
| Power Supply Applications | ITE |
| No. of Outputs | 6Outputs |
| Output Power Max | 500W |
| Output Voltage - Output 1 | 3.3VDC |
| Output Current - Output 1 | 30A |
| Output Voltage - Output 2 | 5VDC |
| Output Current - Output 2 | 36A |
| Output Voltage - Output 3 | 12VDC |
| Output Current - Output 3 | 18A |
| Output Voltage - Output 4 | -12V |
| Output Current - Output 4 | 500mA |
| Input Voltage VAC | 230V AC |
| Power Supply Output Type | Fixed |
| Product Range | Ace ATX PSU with PPFC |
| Product Contents: | PSU and user guide |
| Country of Origin: | China |
