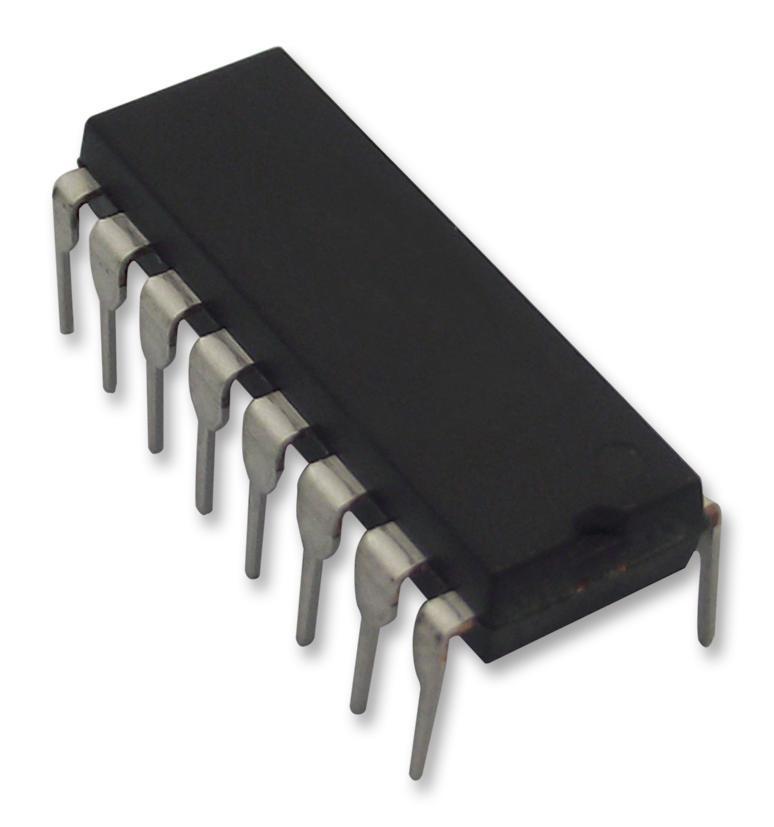

50V, 7 Channel Darlington Transistor Array, NPN, 50V, 500mA, 25W, 600hFE, DIP - ULN2003AN
50V, 7 Channel Darlington Transistor Array, NPN, 50V, 500mA, 25W, 600hFE, DIP - ULN2003AN
Regular price
£2.09 GBP
Regular price
Sale price
£2.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
High-voltage, high-current darlington arrays each contains seven open collector darlington pairs with common emitters. Suitable for relay drivers, stepper and DC brushed motor drivers, lamp drivers, display drivers (LED and gas discharge), line drivers and logic buffers.
Features
- Integrated suppression diode for inductive loads
- Output can be paralleled for higher current
- TTL/CMOS/PMOS/DTL compatible inputs
- Input pins are placed opposite to output pins to simplify layout
| Specifications | |
|---|---|
| Transistor Polarity | NPN |
| Collector Emitter Voltage V(br)ceo | 50V |
| DC Collector Current | 500mA |
| Power Dissipation Pd | 25W |
| DC Current Gain hFE | 600hFE |
| Transistor Case Style | DIP |
| No. of Pins | 16Pins |
| Transistor Mounting | Through Hole |
| Operating Temperature Max | 70°C |
| Product Range | ULN200x |
| Country of Origin: | China |
