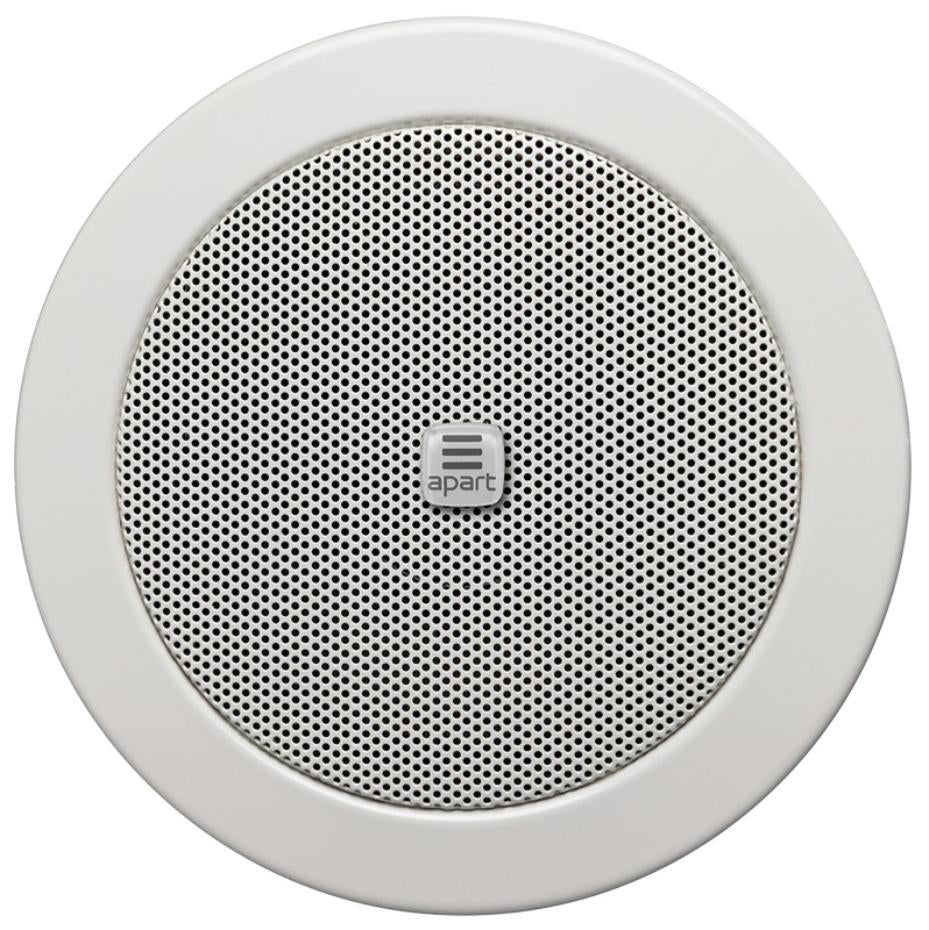

50W 2 Way Thin Edge 6.5" Ceiling Speaker 70V/100V/16R - CMX20DT
50W 2 Way Thin Edge 6.5" Ceiling Speaker 70V/100V/16R - CMX20DT
Couldn't load pickup availability
CMX20T 2 way loudspeaker produces a warm and deep sound ideal for speech and music. The speaker has an 8" enforced polypropylene woofer and 1" tweeter with a very low distortion. It makes the CMX20T very suitable for the distribution of microphone calls and background music at higher volume levels. The housing is made of high quality ABS. The woofer is made out of enforced polypropylene with a rubber edge, which makes it moisture resistant. The aluminium grille makes CMX20T humidity proof, suitable for use in bathrooms and kitchens. In 16R use you can connect up to 4x speakers in parallel on each channel of a standard 4R amplifier. For 100V use the CMX20T is equipped with a high quality 20W transformer with several power tappings. It is easy to install due to its simple, quick mounting system with only 3x screws. These screws are hidden behind the loudspeaker grille giving the speaker a modern and striking design. The thin edge grille and chassis integrated neodymium magnets will guarantee an easy, smooth and elegant integration in every environment.
Features
- 8" Woofer + 1" tweeter
- Output power: 50W at 16R
- 70V/100V tappings: 2.5/5/10/20W
- Max. SPL ( at 1m): 108dB
- IP rating: IP50
- Cone material: Polypropylene
- Mounting: 3x Screws
- Colour: RAL9010 white
- Cutout diameter: 223mm
- Frequency response: 50Hz to 20kHz
- Steel grill
- Dispersion: 180?
- Dimensions (HxDia): 90x250mm
- Weight: 1.45kg
| Specifications | |
|---|---|
| Transformer Power Tappings | 20/10/5/2.5W |
| Frequency Response Min | 50Hz |
| Frequency Response Max | 20kHz |
| External Height | 87mm |
| External Width | 250mm |
| Product Range | APART Ceiling Speakers 16R/100V |
| Country of Origin: | China |
