512 DMX Lighting Control Interface - TOUCH 512
512 DMX Lighting Control Interface - TOUCH 512
Regular price
£267.49 GBP
Regular price
Sale price
£267.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

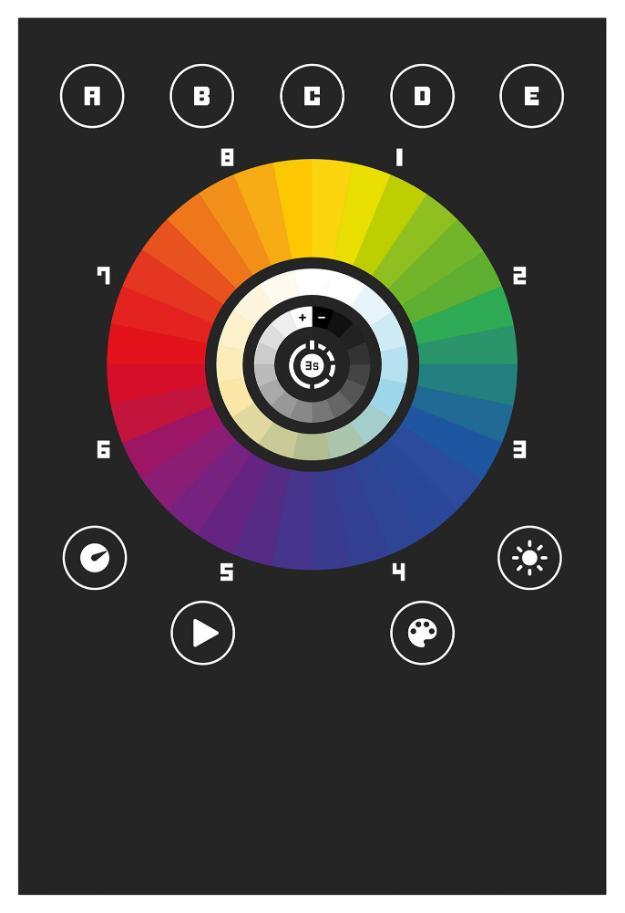

The new TOUCH DMX Lighting control interface comes with a sleek design and visually intuitive multifunction touch-sensitive surface for all your indoor installations. The TOUCH interface Controls up to two universes across five zones with control one split universe with five pages of scene memory with the TOUCH 512. The TOUCH 512 offers instant playback of up to forty custom programmed scenes.
Features
- LED PLAYER / PRO DMX / PIXXEM (In/Out): 512 (Split x2)
- 2022 Chromateq software: Yes
- USB-C: Yes (5V. DC, 0.2A)
- Max interface connected: 12 (USB)
- RJ45 connector: Yes (Smart contacts, M/S, Infrared, Light sensor)
- 7 Pin Terminal Block: Yes (DMXA, DMXB, Power)
- Power Input / Output: 9V to 24V DC, 0.2A / 5V
- ABS, glass (panel) Housing: Yes
- Fine wheel control: Yes, RGB colour, RGBWA-UV, cold and warm white, CCT
- Standby panel display animations: Yes
- MASTER / SLAVE Synchro (Wired): Yes (32 max wired)
- Power: Input: 9V to 24V DC, 0.1A / Output: 5V DC
- Memory Step capacity: 6K to 30K
- Max. Scene capacity: x40 (x8 per page)
- SD Card expansion slot (Class 10 Micro SD): Yes (FAT format, max. 256 GB, Class 10)
- Dimensions: 144x97x10mm
- Weight: 0.2kg
| Specifications | |
|---|---|
| Country of Origin: | China |
