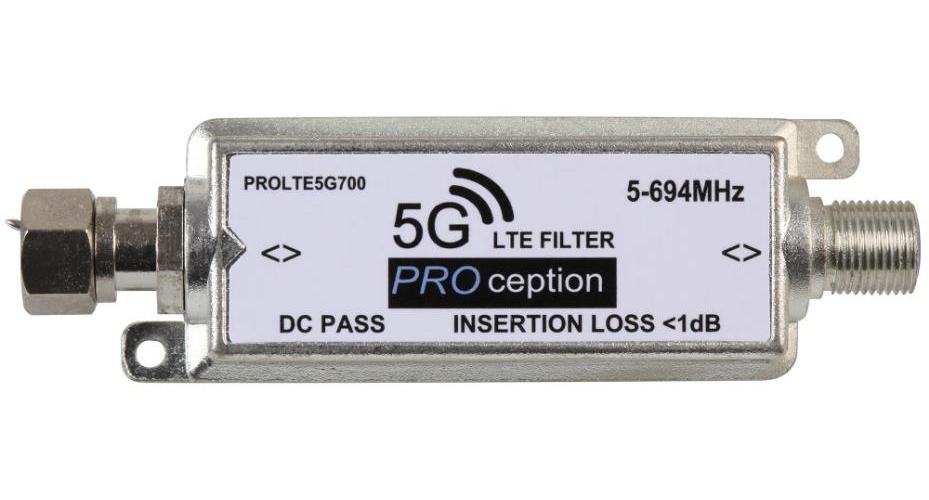

5G Filter, F Female to F Male - PROLTE5G700

Features

• Passes all terrestrial broadcast transmissions up to and including TV channel 48
• High attenuation in LTE bands, cures the majority of interference problems, from base stations and mobile equipment
• Low insertion loss less than 1dB and good, 75R match throughout the pass-band
• F connectors with screened metal casing, prevents leakage around the filter
• Male and female connectors allow insertion into existing systems with no need for further cables or back-to-back adaptors
• Pure low-pass filter, passes AC and DC line-power
• Insertion loss: DC 686MHz, <1dB
• Attenuation (>700MHz): 686MHz, -25dB
