5mm Low Profile 90° Terminal Block, 2-Pole, 16A - CAMDENBOSS
5mm Low Profile 90° Terminal Block, 2-Pole, 16A - CAMDENBOSS
Regular price
£1.89 GBP
Regular price
Sale price
£1.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

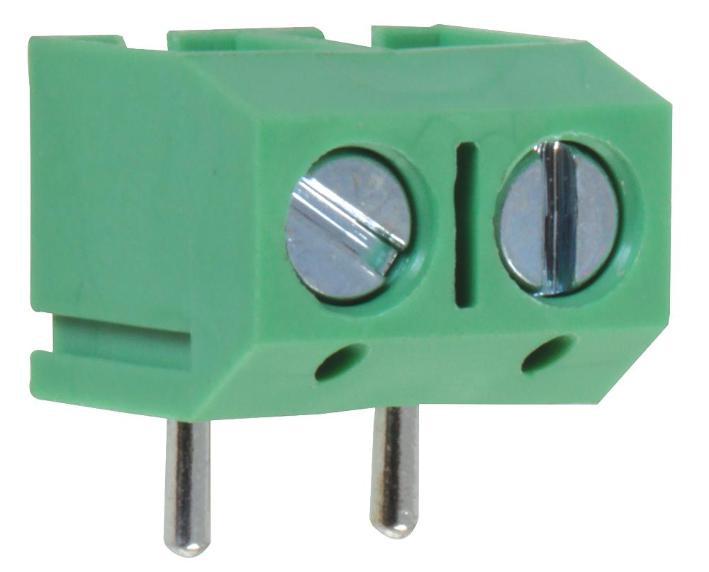

The CTBP5050/2 from Camdenboss is a 5mm pitch low profile 90? screw terminal block with 2 poles interlocking mechanism. It is moulded in green UL94-V0 flame retardant PA66 material. Approved by UL and VDE.
Features
- Wire size of 1.5mm² (22AWG to 14AWG)
- Wire protector terminals, anti solder wicking terminal
- Guided pin alignment
- Rating is UL=16A/250V, VDE=24A/250V
- Insulation resistance is 500Mohm/500V withstand voltage is AC2000V/1min, 20mohm contact resistance
- Working temperature range from -40°C to 120°C
- Phosphor bronze, nickel plated wire protector
- Tin plated brass pin
- M2.5 steel, zinc plated screws
- 10mm length
| Specifications | |
|---|---|
| Pitch Spacing | 5mm |
| No. of Positions | 2Ways |
| Wire Size AWG Min | 22AWG |
| Wire Size AWG Max | 14AWG |
| Conductor Area CSA | 1.5mm² |
| Wire Connection Method | Screw |
| Rated Current | 16A |
| Rated Voltage | 250V |
| Block Orientation | Through Hole Vertical |
| Product Range | CamBlock Plus Series |
| Country of Origin: | China |
