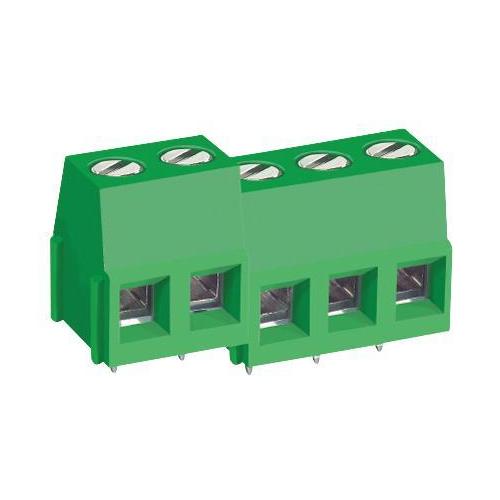

5mm Modular PCB Terminal Block, 2 Way, 26AWG to 12AWG, Screw - MC000046
5mm Modular PCB Terminal Block, 2 Way, 26AWG to 12AWG, Screw - MC000046
Regular price
£1.39 GBP
Regular price
Sale price
£1.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MC000046 is a 2-way 16A wire-to-board Terminal Block with tin-plated brass terminal, green polyamide 66 insulating body, nickel-plated steel cage clamp and screw. It has screw wire connection and through-hole right-angle block orientation. Modular terminal block, allowing combination with other modular or single type Multicomp terminal blocks.
Product Info
- >2000MR at 500VDC Insulation resistance (Maximum)
- -40 to 105°C Operating temperature range
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
| Details | |
|---|---|
| Pitch Spacing | 5mm |
| No. of Positions | 2Ways |
| Wire Size AWG Min | 26AWG |
| Wire Size AWG Max | 12AWG |
| Wire Connection Method | Screw |
| Rated Current | 16A |
| Rated Voltage | 300V |
| Block Orientation | Through Hole Right Angle |
| Product Range | MC00004 Series |
| Country of Origin: | Taiwan |
