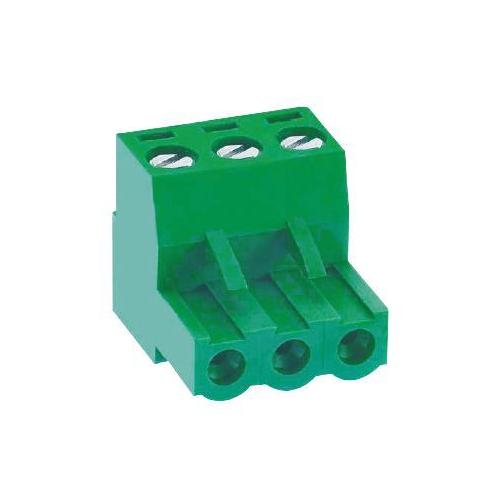

5mm Pluggable Terminal Block, Plug, 3 Way, 26AWG to 12AWG, 16A - MC000137
5mm Pluggable Terminal Block, Plug, 3 Way, 26AWG to 12AWG, 16A - MC000137
Regular price
£1.89 GBP
Regular price
Sale price
£1.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MC000137 is a 3-way 16A straight Pluggable Terminal Block with green polyamide 66 insulating body, tin-plated phosphor bronze contacts and a zinc+Cr+3 screw. It has screw wire connection and 2000VAC minimum insulation withstand voltage.
Product Info
- >2000MR at 500V Insulation resistance
- 7lb-inch Screw torque
- -40 to 105°C Operating temperature range
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
| Details | |
|---|---|
| Pitch Spacing | 5mm |
| No. of Positions | 3Ways |
| Wire Size (AWG) | 24AWG to 12AWG |
| Wire Connection Method | Screw |
| Rated Current | 16A |
| Rated Voltage | 300V |
| Country of Origin: | Taiwan |
