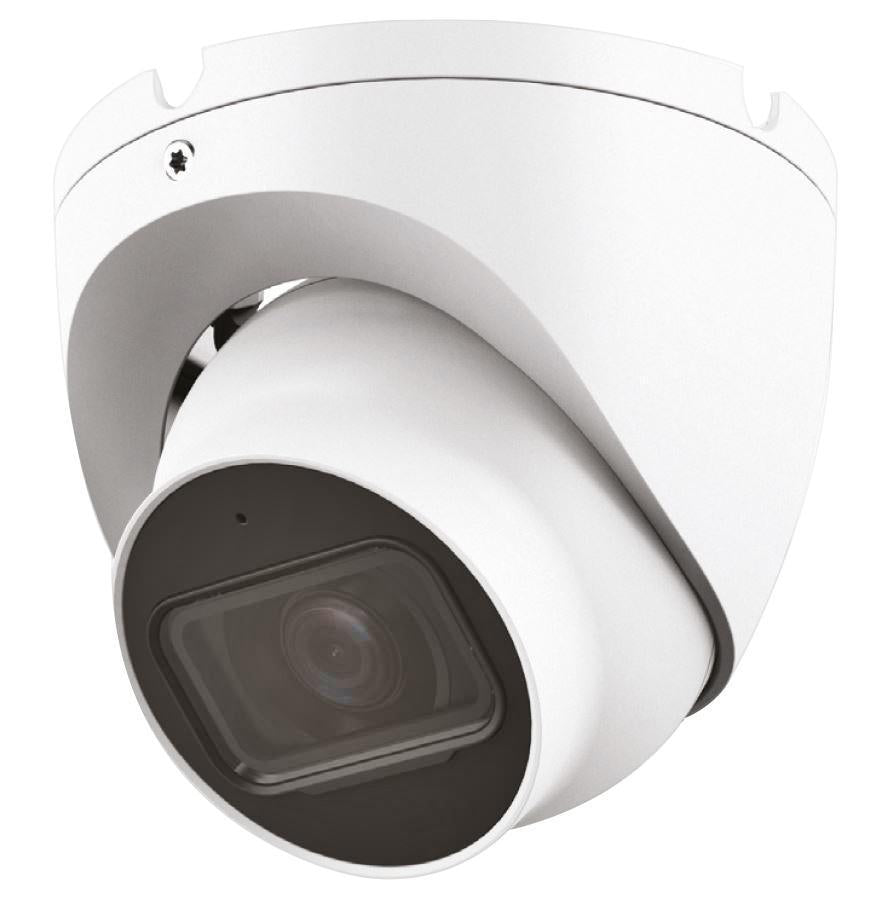

5MP HDCVI IR Turret Camera IP67, White - EAGLE-5-TUR-FW
5MP HDCVI IR Turret Camera IP67, White - EAGLE-5-TUR-FW
Couldn't load pickup availability
The camera features a compact design and offers a high quality image at a friendly price. Its structural flexibility and high performance makes it an ideal choice for SMB solutions. HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself the best choice for investment protection. The camera is designed with IR LED illumination for best lowlight performance. It supports multiple video formats including HDCVI, CVBS and other two common HD analog formats. It supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise. OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. Its outstanding reliability is unsurpassed due to its rugged design and protection against water & dust with IP67/4KV rating suitable for indoor/outdoor environments.
Features
- 1/2.7" CMOS sensor
- Video output: 1x BNC port (CVI/TVI/AHD/CVBS)
- Effective pixels: 2592(H)×1944(V) 5MP
- Lens: 2.8mm Fixed-focal
- Resolution: 5MP (2592×1944); 4MP (2560×1440);1080P (1920x1080p); 960H (960x576p/960x480p)
- Electronic Shutter: PAL: 1/25s to 1/100000s NTSC: 1/30s to 1/100000s
- IR: 1x LED distance up to 30m
- 2DNR Noise reduction
- Min Illumination 0 Lux (IR ON - IR-cut technology)
- Audio port: Built-in mic
- Pan/Tilt/Rotation range: Pan: 0° to 360°,Tilt: 0° to 78°, Rotation: 0° to 360°
- IP Rating: IP67
- Angle of view (HxVxD): 93°x68°x116°Wide Dynamic Range (DWDR)
- Auto/Manual Gain Control: Built-in
- Power consumption: max. 3.7W (IR ON) 12V DC
- Fixed iris - close focus distance 0.8m/1.4m
- Day/Night mode: Auto switch by ICR
- Operating temperature: -40°C to +60°C; <95% humidity (non-condensation)
- Dimensions (HxDia): 86mm x 97mmØ
- Weight: 220g
| Specifications | |
|---|---|
| Image Sensor Size | 1/2.7 " |
| Resolution | 5MP |
| Supply Voltage | 12V |
| Illumination Min | 0lx |
| Lens Style | 2.8mm |
| IR Range Max | 30m |
| Product Range | OYNX Turret Cameras |
| Country of Origin: | China |
