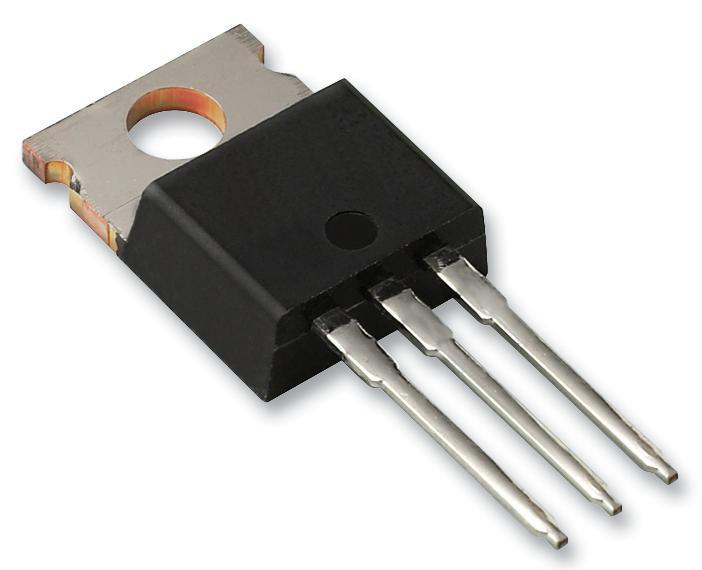

5V, 1.5A Positive Voltage Regulator in TO-220-3 Package - UA7805CKCS
5V, 1.5A Positive Voltage Regulator in TO-220-3 Package - UA7805CKCS
Regular price
£3.29 GBP
Regular price
Sale price
£3.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The UA7805CKCS is a fixed voltage regulator capable of delivering up to 1.5A of output current. The internal current-limiting and thermal-shutdown features of this regulator essentially make it immune to overload. This device can also be used with external components to obtain adjustable voltage and currents.
Features
- Output current up to 1.5A
- Internal Thermal-Overload Protection
- High Power-Dissipation Capability
- Internal Short-Circuit Current Limiting
- Output Transistor Safe-Area Compensation
| Specifications | |
|---|---|
| Fixed Output Voltage Nom. | 5V |
| Input Voltage Min | 7V |
| Input Voltage Max | 25V |
| Product Range | 7805 Voltage Regulators |
| Output Current | 1.5A |
| Output Type | Fixed |
| Linear Regulator Case Style | TO-220 |
| No. of Pins | 3Pins |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 125°C |
| Country of Origin: | China |
