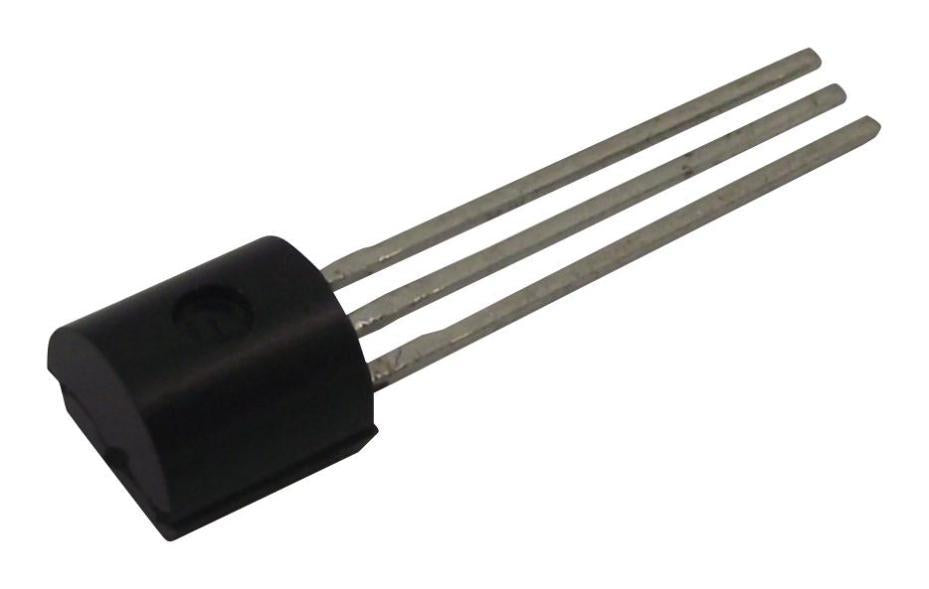

5V, 100mA, TO-92 Linear Fixed Voltage Regulator - L78L05ACZTR
5V, 100mA, TO-92 Linear Fixed Voltage Regulator - L78L05ACZTR
Regular price
£1.39 GBP
Regular price
Sale price
£1.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
This three-terminal positive regulator employs internal current limiting and thermal shutdown, making it essentially indestructible. If adequate heat-sink is provided, it can deliver up to 100 mA output current. It is intended as fixed voltage regulator in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, it can be used with power pass elements to make high-current voltage regulators.
Features
- Output current up to 100 mA
- Thermal overload protection
- Short-circuit protection
- No external components are required
| Specifications | |
|---|---|
| Fixed Output Voltage Nom. | 5V |
| Input Voltage Min | 10V |
| Input Voltage Max | 30V |
| Product Range | 5V 100mA Linear Voltage Regulators |
| Output Current | 100mA |
| Output Type | Fixed |
| Linear Regulator Case Style | TO-92 |
| No. of Pins | 3Pins |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 125°C |
| Country of Origin: | China |
